Why Choose the ABB TZW105 TwinLine-W Plinth?

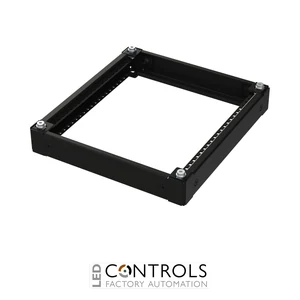

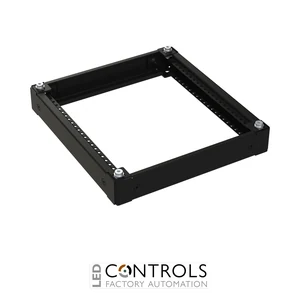

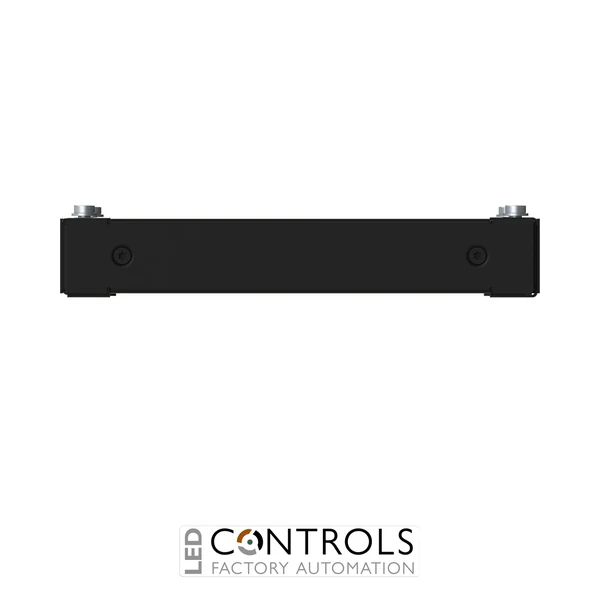

The ABB TZW105, order code 2CPX010661R9999, is a 50 mm high plinth designed for compatible ABB TwinLine-W electrical distribution cabinets. Measuring 300 mm wide × 50 mm high × 350 mm deep, it provides a purpose-designed base for one-panel-width TwinLine-W wall-mounted and floor-standing cabinet installations.
The TZW105 is finished in RAL 9005 black to provide a coordinated appearance with ABB TwinLine plinth components. Its 1 panel width (1PW) format and 350 mm depth correspond with compatible 300 mm wide TwinLine-W enclosures, ensuring straightforward integration into professional low-voltage distribution assemblies.
By raising the enclosure 50 mm above the installation surface, the TZW105 provides useful clearance beneath the cabinet and creates a robust, coordinated foundation for the enclosure. It is particularly suitable for panel-building applications where a compact plinth is required without the additional height of ABB's 100 mm TwinLine-W plinth variants.
Key Advantages
- Genuine ABB TwinLine-W plinth for compatible electrical distribution cabinets.
- Compact 50 mm height raises the enclosure above the installation surface.
- 300 mm width matches compatible one-panel-width TwinLine-W cabinets.
- 350 mm depth corresponds with the TwinLine-W cabinet platform.
- Durable RAL 9005 black finish for coordinated ABB enclosure installations.
- Suitable for compatible TwinLine-W wall-mounted and floor-standing cabinet configurations.
- Purpose-designed ABB accessory for professional low-voltage distribution assemblies.
Key Features
- ABB TZW105 enclosure plinth.
- Designed for the ABB TwinLine-W enclosure system.
- 1 panel width (1PW).
- 50 mm plinth height.
- 300 mm overall width.
- 350 mm depth.
- RAL 9005 black finish.
- Designed for compatible 300 mm wide TwinLine-W cabinets.
- Suitable as a base for compatible wall-mounted and floor-standing cabinets.
- Compatible with ABB TwinLine plinth mounting accessories.
Compact Base for ABB TwinLine-W Distribution Cabinets
A dedicated enclosure plinth provides a coordinated foundation beneath an electrical distribution cabinet while raising the enclosure above the installation surface. The ABB TZW105 is specifically sized for 1PW TwinLine-W cabinets, with its 300 mm width and 350 mm depth matching the corresponding enclosure format.
At 50 mm high, the TZW105 provides a compact alternative to the 100 mm TwinLine-W plinth range where only modest additional clearance is required. ABB also provides dedicated base mounting lugs for securing compatible 50 mm and 100 mm TwinLine plinths to the cabinet from the outside.
Typical Applications
- Compatible ABB TwinLine-W 1PW distribution cabinets.
- 300 mm wide TwinLine-W enclosure installations.
- Wall-mounted and floor-standing low-voltage distribution cabinets.
- Commercial building electrical distribution systems.
- Industrial electrical distribution installations.
- Panel-building applications requiring a compact 50 mm enclosure base.
