Why Choose the ABB TZW110 TwinLine-W Plinth?

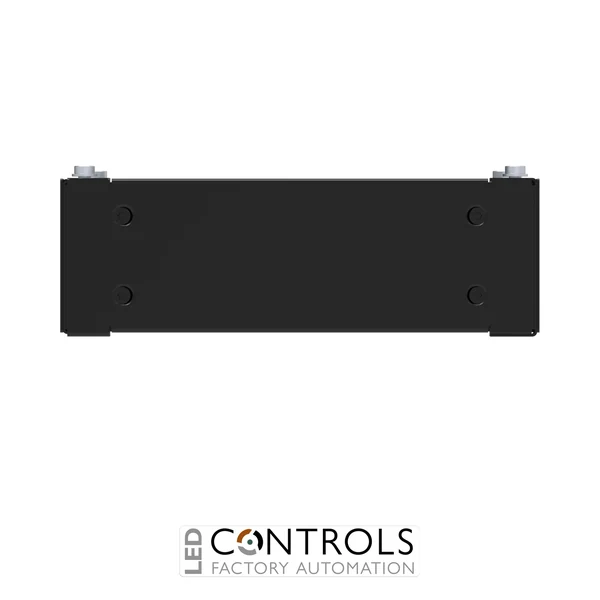

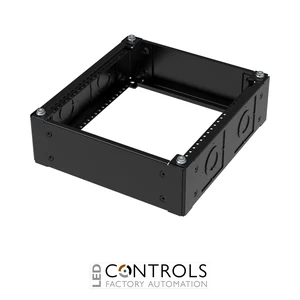

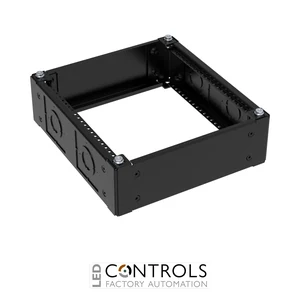

The ABB TZW110 is a 100 mm-high plinth designed specifically for compatible ABB TwinLine-W electrical enclosures. With a nominal footprint of 300 mm wide × 350 mm deep, it provides a purpose-designed raised base for one-panel-width TwinLine-W cabinet installations.
The TZW110 is supplied partly assembled and is intended for indoor use. Its powder-coated RAL 9005 black finish provides a durable appearance that complements compatible ABB enclosure systems, while pre-punched side sections provide provision for lateral cable entry.
The plinth has external dimensions of 300 mm wide × 100 mm high × 350 mm deep, with ABB dimensional data specifying an internal width of 270 mm and internal depth of 298.5 mm. ABB order code 2CPX010662R9999 identifies this specific TwinLine-W accessory within the DESUJ Sub Distribution product group.
Key Advantages
- Purpose-designed 100 mm plinth for ABB TwinLine-W enclosures.
- Suitable for compatible 1 panel width (1PW) cabinets.
- Provides a raised base beneath compatible floor-standing electrical enclosures.
- Pre-punched side sections provide provision for lateral cable entry.
- Durable RAL 9005 powder-coated finish.
- Supplied partly assembled for professional enclosure installations.
Key Features
- ABB TZW110 TwinLine-W plinth.
- 1 panel width (1PW).
- 300 mm nominal width.
- 100 mm plinth height.
- 350 mm nominal depth.
- Internal dimensions of approximately 270 × 298.5 mm.
- RAL 9005 black powder-coated finish.
- Pre-punched lateral cable-entry provision.
- Designed for indoor use.
- Supplied partly assembled.
Practical Base Support and Cable Entry for Electrical Enclosures
Enclosure plinths provide a raised interface between floor-standing electrical cabinets and the supporting surface. The ABB TZW110 adds 100 mm of base height beneath a compatible one-panel-width TwinLine-W enclosure, supporting a structured and professional cabinet installation.
Pre-punched sections in the sides of the TZW110 provide provision for lateral cable entry, helping accommodate cable-routing requirements at the base of the enclosure. Its dimensions and finish are specifically matched to compatible ABB TwinLine-W cabinet systems.
Typical Applications
- ABB TwinLine-W electrical enclosures.
- Floor-standing sub-distribution cabinets.
- Low-voltage distribution assemblies.
- Building-services electrical installations.
- Industrial electrical and control cabinets.
- Panel-building installations requiring raised cabinet bases and lateral cable entry.
