Why Choose the ABB TZW210 TwinLine Plinth?
The ABB TZW210 is a robust steel plinth for ABB TwinLine-W electrical cabinets, designed to provide a stable raised base for compatible low-voltage sub-distribution enclosures. As part of ABB’s TwinLine cabinet accessory range, it is specifically sized for two-field-width cabinets with a nominal enclosure depth of 350 mm.

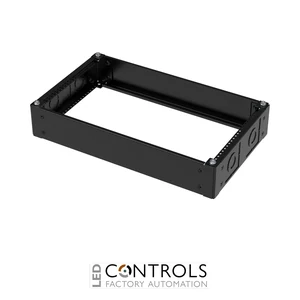

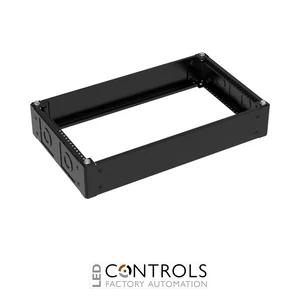

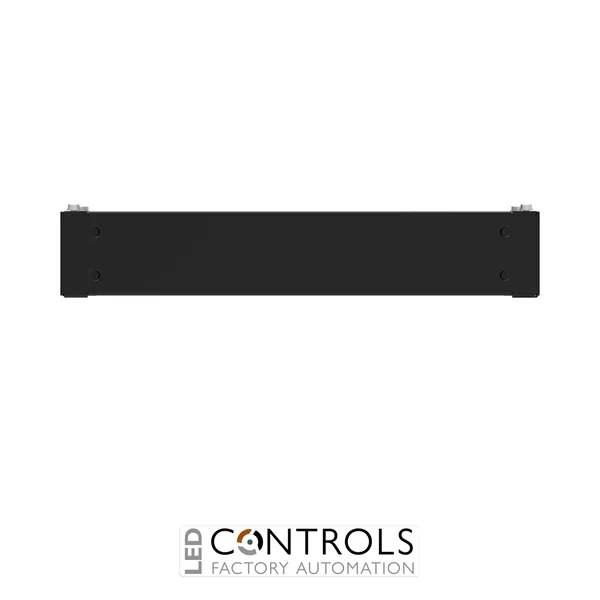

Manufactured from steel with a durable RAL 9005 black finish, the TZW210 provides a strong foundation for compatible TwinLine-W cabinets. Its 100 mm height creates useful space beneath the enclosure for cable routing, while dedicated side knock-outs provide practical cable-entry options during installation.
The TZW210 is designed for cabinets with a nominal footprint of 550 mm wide × 350 mm deep. The complete plinth has an actual depth of approximately 328.5 mm and supports loads up to 169 kg, making it a practical original ABB accessory for professional floor-standing electrical distribution installations.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-W electrical cabinets.
- 550 mm width × 100 mm height for cabinets with a nominal 350 mm depth.
- Strong steel construction with a maximum load capacity of 169 kg.
- Durable RAL 9005 black finish.
- Side knock-outs provide convenient options for cable entry and routing.
- Original ABB enclosure accessory for dependable dimensional and system compatibility.
Key Features
- ABB TZW210 TwinLine-W plinth.
- 100 mm nominal plinth height.
- 550 mm nominal cabinet width.
- 350 mm nominal cabinet depth.
- Two field widths.
- Actual product depth approximately 328.5 mm.
- Manufactured from steel.
- RAL 9005 black finish.
- Side knock-outs for cable-entry requirements.
- Suitable for cable-management applications within compatible cabinet installations.
Stable Support and Cable Access for TwinLine-W Cabinets
Electrical cabinet plinths provide a stable raised foundation for floor-standing distribution enclosures while creating useful space beneath the cabinet for incoming and outgoing cables. The ABB TZW210 combines a strong steel base with dedicated side knock-outs, helping installers achieve organised cable entry while securely supporting the associated TwinLine-W enclosure.
With its 550 mm width, 100 mm height and compatibility with cabinets having a nominal 350 mm depth, the TZW210 is specifically matched to two-field-width TwinLine-W installations. Its 169 kg maximum load capacity and original ABB construction make it suitable for professional commercial and industrial low-voltage distribution systems.
Typical Applications
- ABB TwinLine-W electrical distribution cabinets.
- Low-voltage sub-distribution systems.
- Floor-standing electrical enclosure installations.
- Cabinet installations requiring organised cable entry from below.
- Commercial and industrial electrical distribution systems.
- Panel building and electrical cabinet assemblies.
