Why Choose the ABB TZW410 TwinLine Plinth?

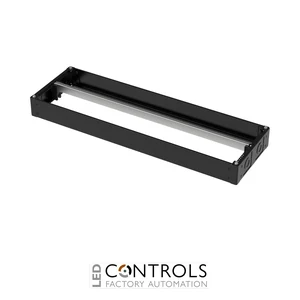

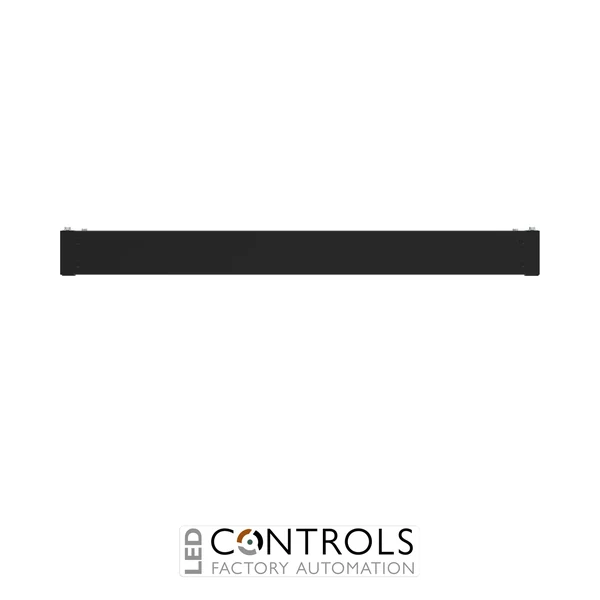

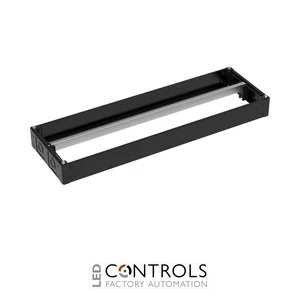

The ABB TZW410 is a robust 100 mm-high plinth for ABB TwinLine-W electrical enclosures. Designed for professional low-voltage distribution installations, it provides a stable base for compatible cabinets while creating useful space beneath the enclosure for cable routing and installation requirements.
Designed for a 4-panel-width (4PW) TwinLine-W cabinet, the TZW410 accommodates an enclosure building width of 1050 mm and depth of 350 mm. The complete steel base is powder-coated in RAL 9005 black, providing a durable finish coordinated with the ABB TwinLine enclosure system.
The TZW410 is supplied partly assembled for indoor use and incorporates pre-punched lateral cable-entry provisions. Its coordinated dimensions and substantial load capacity make it suitable for supporting large TwinLine-W floor-standing distribution assemblies in commercial and industrial installations.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-W enclosures.
- Suitable for cabinets measuring 1050 mm wide × 350 mm deep.
- 100 mm plinth height provides useful clearance beneath the enclosure.
- Strong steel construction with a RAL 9005 black powder-coated finish.
- Pre-punched lateral provisions support convenient cable entry and routing.
- Partly assembled design supports efficient cabinet installation.
Key Features
- ABB TZW410 TwinLine-W plinth.
- 4PW (four panel widths).
- 1050 mm enclosure building width.
- 350 mm enclosure building depth.
- 100 mm plinth height.
- Complete steel base construction.
- Powder-coated finish.
- RAL 9005 black.
- Pre-punched lateral cable entry.
- Suitable for cable routing.
- Partly assembled for indoor installations.
- Maximum load capacity of 320.9 kg.
Stable Base and Cable Routing for TwinLine-W Cabinets
A cabinet plinth raises a floor-standing electrical enclosure above the installation surface, providing additional clearance for incoming and outgoing cables while creating a stable foundation for the distribution assembly. This is particularly useful in larger commercial and industrial switchboard installations where organised cable management is important.
The ABB TZW410 combines a 100 mm plinth height with a 1050 mm × 350 mm nominal cabinet footprint for compatible 4PW TwinLine-W enclosures. Its steel construction, RAL 9005 finish and lateral cable-entry provisions provide a coordinated solution for professional ABB sub-distribution installations.
Typical Applications
- ABB TwinLine-W floor-standing electrical enclosures.
- Low-voltage sub-distribution cabinets.
- Commercial building electrical distribution systems.
- Industrial switchboard installations.
- Floor-standing control and distribution assemblies.
- Installations requiring additional cabinet cable-routing space.
