Why Choose the ABB TZW505 TwinLine Plinth?

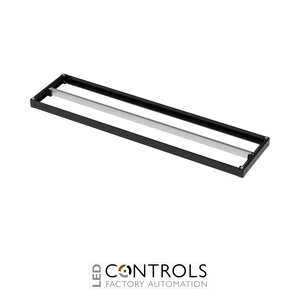

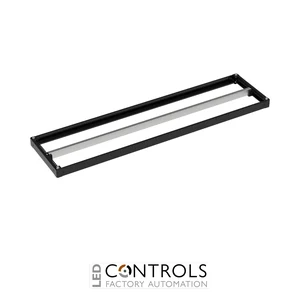

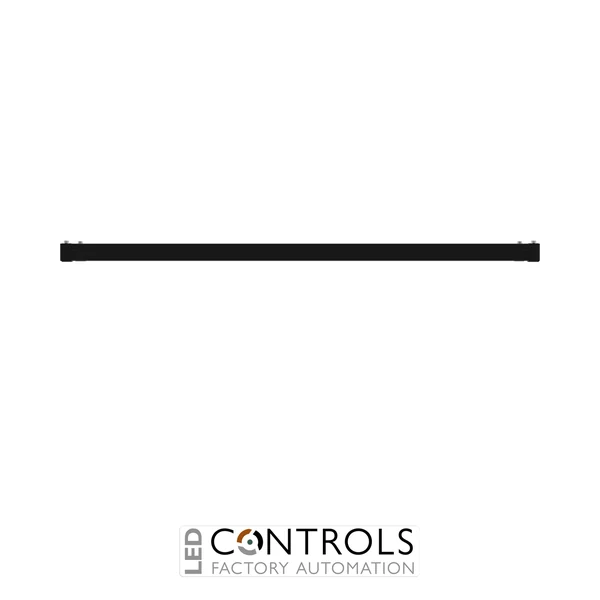

The ABB TZW505 is a robust 50 mm-high plinth for ABB TwinLine-W electrical enclosures. Designed for professional low-voltage distribution installations, it provides a stable base for compatible cabinets while maintaining the coordinated appearance and construction of the TwinLine enclosure system.
Designed specifically for a 5-panel-width (5PW) TwinLine-W arrangement, the TZW505 has authoritative nominal dimensions of 1300 mm wide × 50 mm high × 350 mm deep. ABB dimensional data specifies an actual base depth of 328.5 mm, corresponding to the nominal 350 mm enclosure depth.
The TZW505 is manufactured from steel, supplied partly assembled and finished in RAL 9005 black powder coating. Intended for indoor installations, it provides a durable and system-compatible foundation for large TwinLine-W floor-standing distribution cabinets.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-W enclosures.
- Configured for a 5PW TwinLine-W cabinet arrangement.
- Authoritative nominal size of 1300 mm wide × 50 mm high × 350 mm deep.
- Strong steel construction for professional enclosure installations.
- Durable RAL 9005 black powder-coated finish.
- Partly assembled for efficient installation.
Key Features
- ABB TZW505 TwinLine-W plinth.
- 5PW (five panel widths).
- 1300 mm nominal width.
- 50 mm plinth height.
- 350 mm nominal enclosure depth.
- 328.5 mm actual base depth.
- Complete plinth construction.
- Steel material.
- Powder-coated surface.
- RAL 9005 black.
- Partly assembled.
- Designed for indoor use.
Stable Base for TwinLine-W Cabinets
A cabinet plinth provides a stable foundation beneath a floor-standing electrical enclosure and raises the main cabinet structure above the installation surface. This supports professional installation of larger low-voltage distribution assemblies while maintaining a coordinated enclosure system.
The ABB TZW505 combines a compact 50 mm height with the substantial 1300 mm × 350 mm nominal footprint required by compatible 5PW TwinLine-W installations. Its steel construction and RAL 9005 powder-coated finish make it a durable matching accessory for ABB sub-distribution cabinets.
Typical Applications
- ABB TwinLine-W floor-standing electrical enclosures.
- 5PW low-voltage sub-distribution cabinets.
- Commercial building electrical distribution systems.
- Industrial electrical distribution assemblies.
- Floor-standing switchboard installations.
- Professional TwinLine enclosure systems.
