Why Choose the ABB TZW510 TwinLine Plinth?

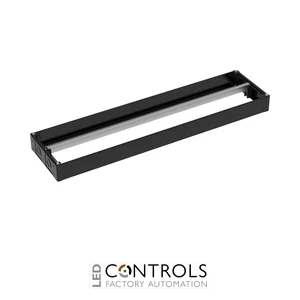

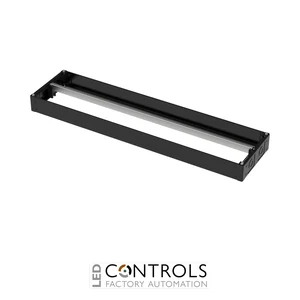

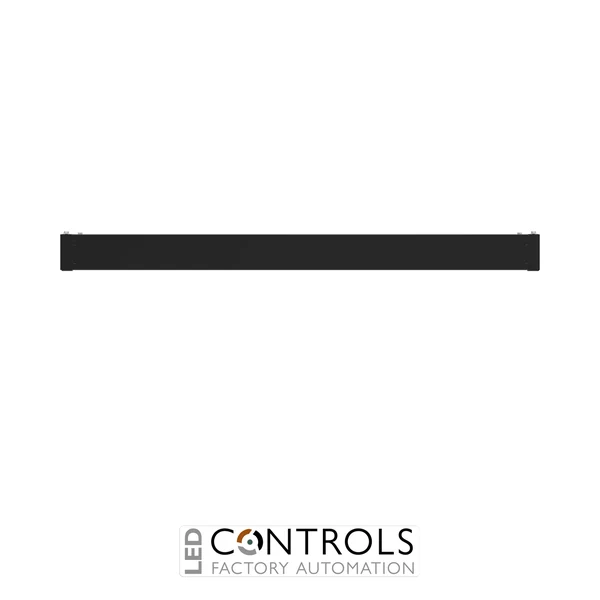

The ABB TZW510 is a dedicated 100 mm high plinth for ABB TwinLine-W distribution cabinets, designed to provide a stable base and additional cable-entry space for compatible low-voltage distribution enclosures. As part of ABB’s TwinLine sub-distribution accessory range, it is dimensioned for cabinets with a 5 PW field width.
The TZW510 features a robust, partially assembled construction for indoor installation and a RAL 9005 powder-coated finish. Integrated lateral pre-punched cable-entry provisions support organised routing of incoming and outgoing conductors while helping maintain a professional cabinet installation.
Designed for the TwinLine-W cabinet format, the TZW510 has nominal dimensions of 1300 mm width × 100 mm height × 350 mm depth. ABB identifies the product under order code 2CPX010670R9999, providing a manufacturer-matched plinth solution for compatible 5-field-wide TwinLine installations.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-W distribution cabinets.
- 100 mm plinth height provides useful space beneath the cabinet.
- 1300 mm nominal width matched to 5 PW TwinLine-W configurations.
- 350 mm nominal depth for compatible TwinLine-W cabinets.
- Lateral pre-punched cable-entry provisions support organised conductor routing.
- Durable RAL 9005 powder-coated finish for professional indoor installations.
Key Features
- ABB TwinLine plinth system.
- Model TZW510.
- 5 PW field width.
- 100 mm nominal height.
- 1300 mm nominal width.
- 350 mm nominal cabinet depth.
- Designed for ABB TwinLine-W cabinets.
- Partially assembled construction for installation convenience.
- Powder-coated in RAL 9005.
- Lateral pre-punched cable-entry provision.
- ABB order code 2CPX010670R9999.
Reliable Cabinet Support and Cable Management
Plinths provide a raised and stable foundation for electrical distribution cabinets while creating additional space beneath the enclosure for cable routing and installation work. A correctly matched plinth can simplify conductor entry, improve accessibility and support a neat, professional low-voltage distribution installation.
The ABB TZW510 is specifically dimensioned for 5 PW TwinLine-W cabinets. Its 100 mm height, robust powder-coated construction and lateral cable-entry provisions make it a practical manufacturer-matched accessory for floor-level cabinet installations and structured sub-distribution systems.
Typical Applications
- ABB TwinLine-W distribution cabinet installations.
- Low-voltage sub-distribution systems.
- Floor-level electrical cabinet installations.
- Commercial and industrial distribution boards.
- Electrical panel and switchgear assemblies.
- Cabinet installations requiring additional cable-routing space.
