Why Choose the ABB TZ626 IP55 Protective Frame?

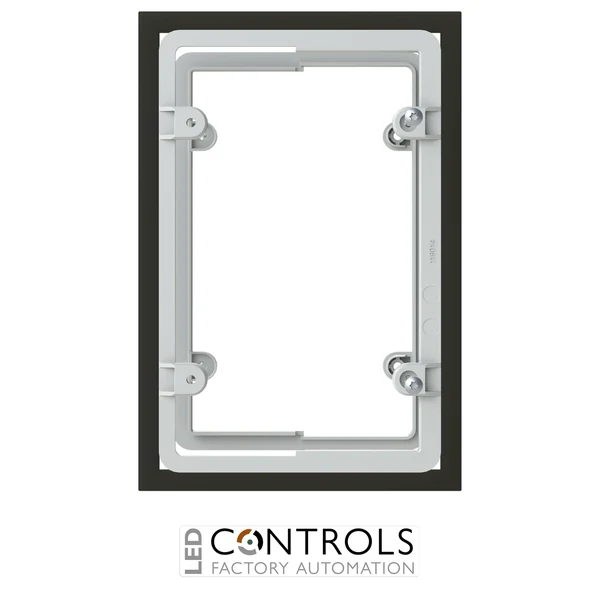

The ABB TZ626 is a purpose-designed IP55 protective frame for stacking and joining earthed ABB TwinLine electrical cabinets. It provides a protected interface between adjoining enclosures while helping the assembled cabinet system maintain its required IP55 protection.

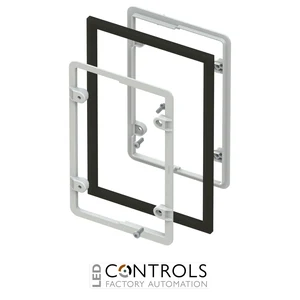

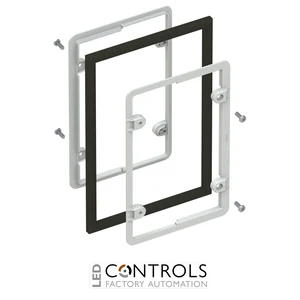

Designed specifically for earthed TwinLine cabinets, the TZ626 is suitable for compatible ABB TwinLine wall-mounted and floor-standing enclosures. The frame is manufactured from durable plastic and is supplied with the required connection material as an unassembled kit for installation during cabinet coupling.
The TZ626 measures 160 mm wide × 55 mm high × 260 mm deep and is finished in grey. It is the designated protective frame for earthed TwinLine cabinet arrangements; ABB specifies the TZ609 protective frame for corresponding protection-insulated cabinet configurations.
Key Advantages
- Purpose-designed IP55 protective frame for ABB TwinLine cabinet stacking.
- Specifically intended for earthed TwinLine cabinets.
- Suitable for compatible wall-mounted and floor-standing cabinets.
- Helps maintain the enclosure system's IP55 protection at cabinet connection points.
- Supplied with connection material for installation.
- Original ABB accessory for dependable TwinLine system compatibility.
Key Features
- ABB TZ626 TwinLine protective frame.
- Designed for IP55 cabinet stacking and coupling.
- For earthed cabinets.
- 160 mm product width.
- 55 mm product height.
- 260 mm product depth.
- Manufactured from plastic.
- Grey finish.
- Supplied as an unassembled kit.
- Includes connection material.
- Suitable for compatible ABB TwinLine wall-mounted and floor-standing cabinets.
IP55 Protection for TwinLine Cabinet Stacking
When TwinLine cabinets are joined or stacked, the interface between the enclosures requires suitable system components to preserve the integrity of the assembled distribution system. The ABB TZ626 provides the protective frame required for earthed TwinLine cabinets, creating the appropriate interface around the cabinet connection while supporting an IP55 enclosure arrangement.
The TZ626 works as part of ABB's TwinLine cabinet connection system and is supplied with connection material for installation. For cabinet stacking, it can be used alongside the appropriate TwinLine connection components, including the ABB TZ608 IP55 connection set where required by the cabinet arrangement.
Typical Applications
- Stacking compatible ABB TwinLine electrical cabinets.
- Joining earthed TwinLine wall-mounted cabinets.
- Joining earthed TwinLine floor-standing cabinets.
- IP55 low-voltage sub-distribution assemblies.
- Commercial building electrical distribution systems.
- Industrial panel-building and electrical enclosure installations.
