Why Choose the ABB TZ602 Carrier Rail?

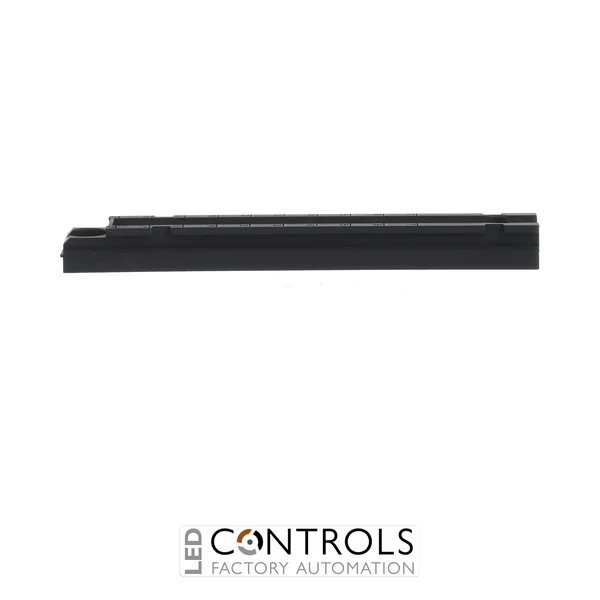

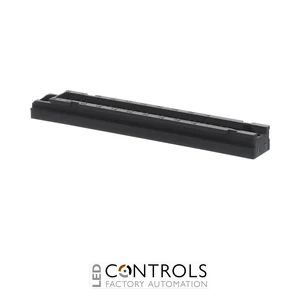

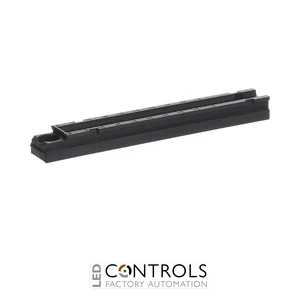

The ABB TZ602 is an unmounted carrier rail / mounting rail designed for use with mounting frame holders in compatible ABB TwinLine-L electrical enclosures. As part of the ABB TwinLine enclosure accessory range, it provides the supporting rail required for suitable internal mounting arrangements in sub-distribution cabinets.
Designed specifically for TwinLine-L cabinets with a 275 mm cabinet depth, the TZ602 allows additional mounting frame support to be incorporated where required by the enclosure configuration. It forms part of ABB's coordinated TwinLine accessory system for professional electrical distribution and panel-building installations.
The TZ602 itself has nominal dimensions of 177.5 mm wide × 18 mm high × 24 mm deep and is supplied as an unmounted kit. ABB identifies the product under order code 2CPX010780R9999, providing precise identification for specification, replacement and procurement.
Key Advantages
- Purpose-designed carrier rail for ABB TwinLine-L enclosures.
- Suitable for cabinets with a 275 mm cabinet depth.
- Designed for use with mounting frame holders.
- Supports additional internal mounting configurations where required.
- Compact accessory designed to integrate with the ABB TwinLine system.
- Supplied unmounted for installation according to the cabinet configuration.
Key Features
- ABB TwinLine-L enclosure accessory.
- Carrier rail / mounting rail for mounting frame holders.
- Suitable for 275 mm deep TwinLine-L cabinets.
- 177.5 mm nominal width.
- 18 mm nominal height.
- 24 mm nominal depth.
- Plastic construction.
- Supplied as an unmounted kit.
- ABB order code 2CPX010780R9999.
Reliable Internal Support for Electrical Distribution Enclosures
Carrier rails and mounting rails provide defined support points for mounting structures inside electrical cabinets. Using enclosure-specific accessories helps maintain a coordinated internal arrangement and ensures that compatible mounting frame components can be installed in the intended positions.
The ABB TZ602 is specifically matched to the TwinLine-L system and its 275 mm cabinet depth. Additional rails can be installed where required by the cabinet configuration, making the accessory useful when extending or adapting the internal mounting arrangement of a TwinLine-L enclosure.
Typical Applications
- ABB TwinLine-L electrical enclosures.
- Mounting frame holder installations.
- Electrical sub-distribution cabinets.
- Industrial and commercial distribution panels.
- Panel-building and switchgear projects.
- Extension or modification of compatible TwinLine-L mounting arrangements.
