Why Choose the ABB TZ603 Carrier Rail?

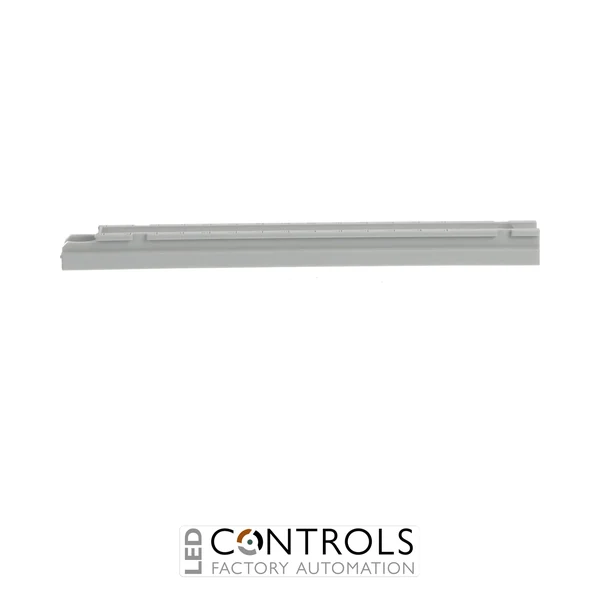

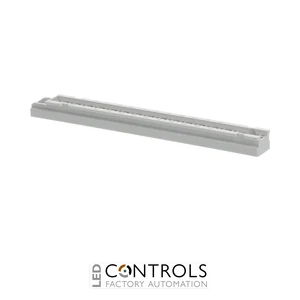

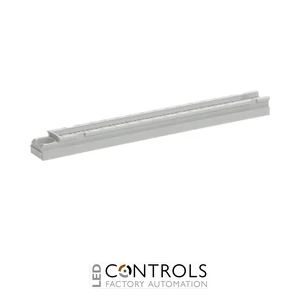

The ABB TZ603 is an unmounted carrier rail / mounting strip designed for mounting frame holders in compatible ABB TwinLine-W electrical enclosures. As part of the ABB TwinLine enclosure accessory range, it provides a purpose-designed mounting component for professional sub-distribution cabinet installations.
Designed specifically for TwinLine-W cabinets with a 350 mm cabinet depth, the TZ603 supports the installation of mounting frame holders within the enclosure. Depending on the cabinet configuration and expansion requirements, additional carrier rails can be retrofitted to support the required internal arrangement.
The TZ603 has dimensions of 226 mm wide × 18 mm high × 24 mm deep and is manufactured from plastic. ABB identifies the product under order code 2CPX010781R9999, providing precise identification for specification, replacement and procurement.
Key Advantages
- Purpose-designed carrier rail for ABB TwinLine-W enclosures.
- Suitable for cabinets with a 350 mm cabinet depth.
- Designed for use with mounting frame holders.
- Additional rails can be retrofitted according to the enclosure configuration.
- Compact plastic construction for integration within the TwinLine system.
- Supplied unmounted for installation where required within compatible cabinets.
Key Features
- ABB TwinLine-W enclosure accessory.
- Carrier rail / mounting strip for mounting frame holders.
- Suitable for 350 mm deep TwinLine-W cabinets.
- 226 mm width.
- 18 mm height.
- 24 mm depth.
- Plastic construction.
- Supplied as an unmounted accessory.
- ABB order code 2CPX010781R9999.
Reliable Internal Support for Electrical Distribution Enclosures
Carrier rails and mounting strips provide defined support points for mounting structures within electrical cabinets. Using enclosure-specific components helps maintain an organised internal arrangement and ensures compatible mounting frame holders can be positioned as intended within the enclosure system.
The ABB TZ603 is specifically designed for TwinLine-W cabinets with a 350 mm depth. Additional mounting strips may be installed according to the required enclosure configuration, providing flexibility when expanding or adapting compatible TwinLine-W distribution cabinets.
Typical Applications
- ABB TwinLine-W electrical enclosures.
- Mounting frame holder installations.
- Electrical sub-distribution cabinets.
- Commercial and industrial distribution panels.
- Panel-building and switchgear installations.
- Expansion or modification of compatible TwinLine-W mounting arrangements.
