Why Choose the ABB TZ605 Frame Support?

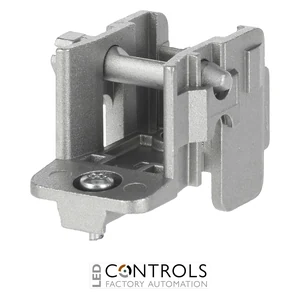

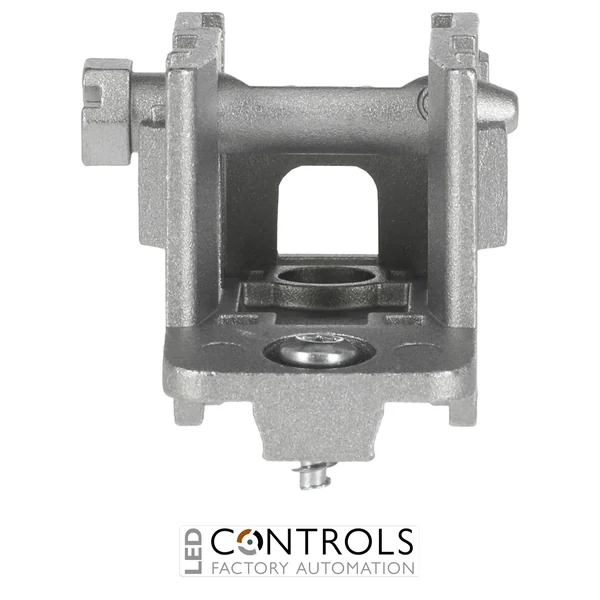

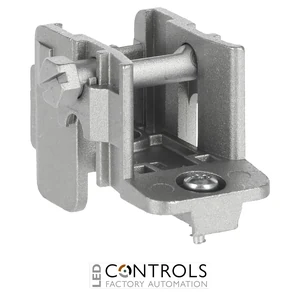

The ABB TZ605 is a compact mounting frame support for left- or right-hand installation, designed for use within ABB sub-distribution cabinet systems. Supplied under ABB order code 2CPX010783R9999, it supports the expansion of enclosure interiors with WR and EDF mounting frames, mounting plates or centre support rails.
As part of ABB's DESUJ Sub Distribution accessory range, the TZ605 provides a secure mechanical interface for configuring modular distribution assemblies. Its unmounted kit format allows the support to be installed where required during cabinet assembly or modification.
The TZ605 is suitable for left- or right-hand mounting and is designed for ABB TwinLine wall-mounted and floor-standing cabinets. Its compact 40 × 30 × 45 mm dimensions make it a practical accessory for expanding internal mounting structures while maintaining an organised cabinet layout.
Key Advantages
- Designed for left- or right-hand mounting within compatible ABB cabinets.
- Supports expansion using WR and EDF mounting frames.
- Suitable for use with mounting plates and centre support rails.
- Compact construction for space-efficient cabinet installation.
- Supplied as an unmounted kit for flexible enclosure configuration.
- Manufactured for integration with ABB sub-distribution systems.
Key Features
- ABB TZ605 frame support.
- ABB order code 2CPX010783R9999.
- Suitable for left- or right-hand installation.
- Designed for WR and EDF mounting frame expansion.
- Compatible with mounting plates and centre support rails.
- Suitable for ABB TwinLine wall-mounted and floor-standing cabinets.
- Aluminium construction.
- Compact enclosure accessory measuring 40 × 30 × 45 mm.
Flexible Cabinet Expansion and Mounting
Mounting frame supports such as the ABB TZ605 provide the structural connection required when expanding the internal mounting system of an electrical distribution cabinet. Correctly positioned supports help create a stable base for mounting frames, plates and support rails used to carry electrical equipment.
The TZ605 can be installed on either side of compatible ABB cabinet systems, making it suitable for customised distribution-board layouts and retrofit work. Depending on the selected cabinet configuration, additional mounting frame holders or EDF adapters may also be used as part of the completed assembly.
Typical Applications
- ABB sub-distribution cabinet assemblies.
- TwinLine wall-mounted cabinets.
- TwinLine floor-standing cabinets.
- WR mounting frame expansion.
- EDF mounting frame installations.
- Mounting plate and centre support rail configurations.
