Why Choose the ABB TZ601A TwinLine-G Installed Carrier Rail?

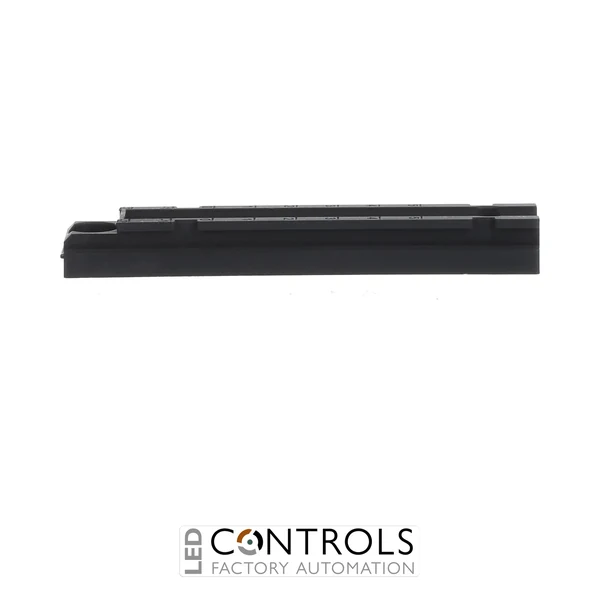

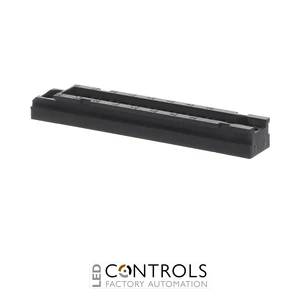

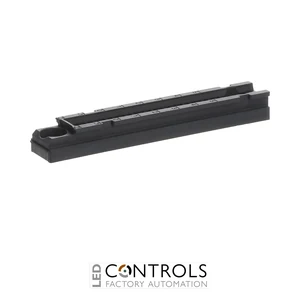

The ABB TZ601A, order code 2CPX010787R9999, is an installed carrier rail / mounting strip designed for compatible ABB TwinLine-G electrical distribution cabinets with a nominal cabinet depth of 225 mm. It provides the mounting interface required for compatible mounting frame holders within the TwinLine modular enclosure system.
The TZ601A is the factory-installed version of the ABB TZ601 mounting strip and is intended specifically for TwinLine-G cabinets. ABB specifies the installed version for cabinets supplied with factory-fitted meter fields, distribution fields, combination sets or CombiLine modules, allowing the internal mounting structure to be configured as part of the enclosure assembly.
Manufactured from plastic, the TZ601A is a compact mounting accessory designed around the 225 mm deep TwinLine-G cabinet platform. Factory-installed mounting strips are positioned to support the appropriate mounting frame holders, with an additional mounting strip provided in wider cabinet configurations where required by the internal arrangement.
Key Advantages
- Genuine ABB TwinLine-G installed mounting strip / carrier rail.
- Designed specifically for cabinets with a nominal depth of 225 mm.
- Provides the mounting interface for compatible TwinLine mounting frame holders.
- Factory-installed version for configured ABB distribution cabinets.
- Suitable for cabinets with factory-installed meter fields, distribution fields, combination sets or CombiLine modules.
- Manufactured from durable plastic.
- Part of ABB's coordinated modular mounting system for professional low-voltage distribution assemblies.
Key Features
- ABB TZ601A carrier rail / mounting strip.
- Designed for the ABB TwinLine-G enclosure system.
- Nominal cabinet depth: 225 mm.
- Designed for mounting frame holders.
- Supplied as the installed-in-cabinet version.
- Manufactured from plastic.
- Compact component dimensions of approximately 22 mm × 18 mm × 24 mm.
- Suitable for factory-configured meter and distribution assemblies.
- Suitable for combination sets and CombiLine modules.
- Factory mounting arrangement can include right- and left-hand mounting positions according to cabinet configuration.
Installed Mounting Support for ABB TwinLine-G Cabinets
ABB TwinLine cabinets use a modular internal mounting system that allows mounting frames, mounting plates and compatible distribution equipment to be arranged according to the requirements of the finished assembly. The TZ601A provides a factory-installed mounting strip for mounting frame holders in TwinLine-G cabinets with a nominal depth of 225 mm.
The installed TZ601A version is intended for use in cabinets configured at the factory with ABB meter and distribution fields, combination sets or CombiLine modules. Depending on cabinet width and internal configuration, mounting strips are positioned on the appropriate sides of the cabinet and an additional strip can be incorporated in cabinets of four or more panel widths where required.
Typical Applications
- ABB TwinLine-G electrical distribution cabinets.
- 225 mm deep TwinLine-G enclosure configurations.
- Factory-installed meter field assemblies.
- Factory-installed distribution field assemblies.
- ABB combination-set and CombiLine module installations.
- Internal mounting structures requiring compatible ABB mounting frame holders.
