2CPX010868R9999 ABB TZT305 TwinLine N 55 Glass Door 3PW 5GU

2CPX010868R9999 ABB TZT305 TwinLine N 55 Glass Door 3PW 5GU

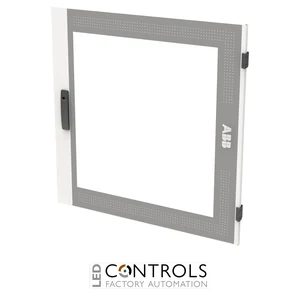

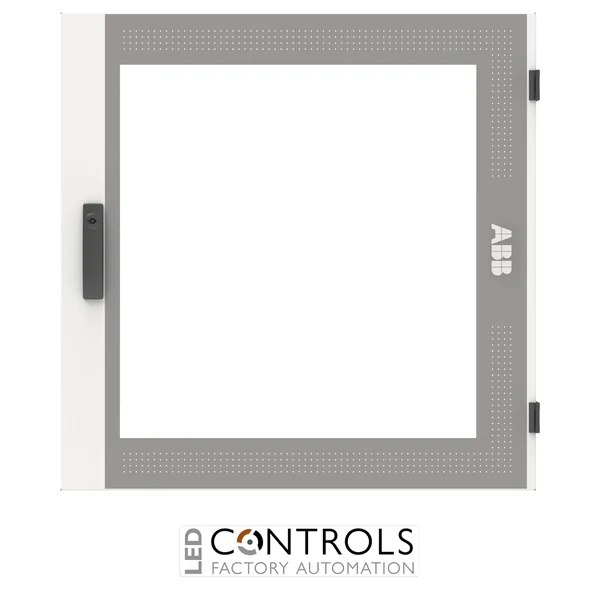

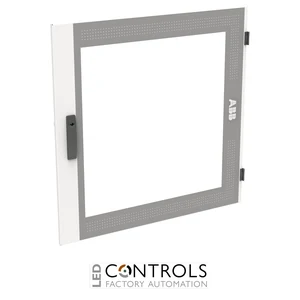

ABB TZT305 TwinLine N 55 single-leaf glass viewing door in a 3PW × 5GU format with IP55 protection, a 180° opening angle and RAL 7035 powder-coated finish for compatible electrical enclosures.

SKU: 2CPX010868R9999Alt SKU: TZT305MPN: 2CPX010868R9999
Price
List Price £505.43 ex VAT
Your Price (ex VAT)
£505.43
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £505.43
Trade pricing is personalised to your account

Manufacturer Lead Time

£505.43

Why Choose the ABB TZT305 Glass Door?

The ABB TZT305 is a robust single-leaf door with viewing glass designed for compatible ABB TwinLine N 55 wall-mounted enclosures. With a 3 panel-width (3PW) format and 5 grid-unit (5GU) height, it provides convenient visual access to equipment while maintaining the enclosure's protective function.

Designed for compatible ABB TwinLine-TW/L/G305 cabinets, the TZT305 features a powder-coated RAL 7035 finish, rod locking and a standard 3 mm double-bit lock. The glazed construction allows installed equipment to be inspected without opening the enclosure door.

The TZT305 provides an IP55 protection rating when used in its intended compatible enclosure configuration and has a 180° door opening angle. ABB identifies the product under order code 2CPX010868R9999, providing precise identification for specification, replacement and procurement.

Key Advantages

  • Purpose-designed glass viewing door for ABB TwinLine N 55 enclosures.
  • 3PW × 5GU format for compatible cabinet configurations.
  • Viewing glass enables convenient inspection of installed equipment.
  • IP55 protection rating for suitable enclosure installations.
  • 180° opening angle provides excellent access during installation and maintenance.
  • Rod locking with a 3 mm double-bit standard lock.

Key Features

  • ABB TwinLine N 55 enclosure accessory.
  • Single-leaf door with viewing glass.
  • 3 panel widths (3PW).
  • 5 grid units (5GU).
  • RAL 7035 powder-coated finish.
  • IP55 protection rating.
  • 180° door opening angle.
  • Rod locking mechanism.
  • Standard 3 mm double-bit lock.
  • Suitable for compatible TwinLine-TW/L/G305 wall cabinets.

Reliable Viewing Access for Electrical Distribution Enclosures

Glazed enclosure doors allow operators and maintenance personnel to inspect equipment, indicators and installed components without opening the electrical cabinet. This provides practical visibility while retaining the protective enclosure barrier during routine observation.

The ABB TZT305 combines a viewing window with the mechanical features required for compatible TwinLine N 55 installations. Its rod locking system, IP55 protection rating and wide 180° opening angle make it suitable for professional electrical distribution and panel-building applications.

Typical Applications

  • ABB TwinLine N 55 wall-mounted enclosures.
  • Compatible TwinLine-TW/L/G305 cabinets.
  • Electrical sub-distribution boards.
  • Industrial control and automation cabinets.
  • Commercial electrical distribution installations.
  • Panels requiring visible inspection of internal equipment.

Technical Specifications

Tick the specs you need, then view products that match.

IP Rating IP55
Product Series S&J TwinLine
Device Type Door / Cover / Partition
Series TwinLine N 55
Product type Door with viewing glass
Format 3PW / 5GU
Door type Single-leaf
Compatible cabinets TwinLine-TW/L/G305
Protection rating IP55
Door opening angle 180°
Colour RAL 7035
Surface finish Powder-coated
Locking type Rod locking
Lock Standard double-bit, 3 mm
Weight 10.2 kg
Pack quantity 1
ABB order code 2CPX010868R9999
ABB product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB TZT305 used for?

The ABB TZT305 is a single-leaf glass viewing door designed for compatible ABB TwinLine N 55 electrical enclosures.

What size format is the ABB TZT305?

The TZT305 is designed in a 3 panel-width (3PW) × 5 grid-unit (5GU) format.

What protection rating does the ABB TZT305 provide?

The TZT305 is specified with an IP55 protection rating when installed in its intended compatible enclosure configuration.

How far can the ABB TZT305 door open?

The TZT305 has a 180° door opening angle, providing convenient access to equipment inside the enclosure.

What is the ABB order code for the TZT305?

The ABB order code for the TZT305 is 2CPX010868R9999.

Trusted by Panel Builders and Electrical Installers

ABB TwinLine enclosure accessories are engineered as coordinated components for professional electrical distribution systems, helping panel builders and installers create accessible, protected and dependable cabinet configurations.
