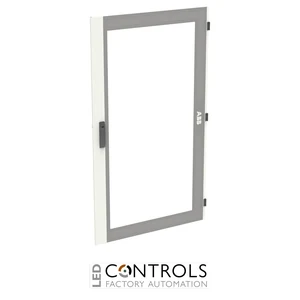

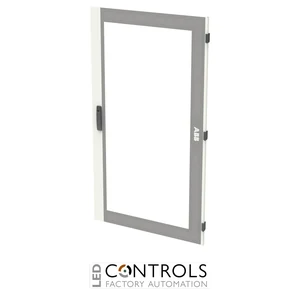

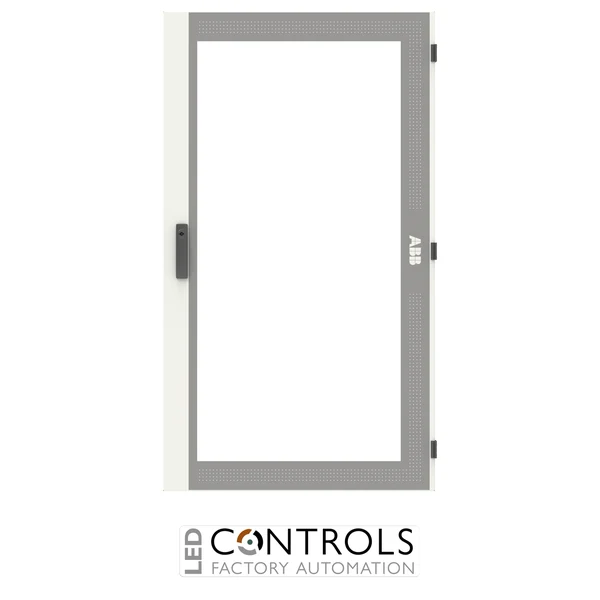

Why Choose the ABB TZT309 TwinLine Glass Door?
The ABB TZT309 is a high-quality transparent viewing door for ABB TwinLine electrical distribution enclosures, designed to provide protected visibility of equipment installed inside low-voltage sub-distribution cabinets. As part of the ABB TwinLine accessory range, the TZT309 is configured for a 3 PW field width and 9 GU height.
The integrated viewing panel allows operators and maintenance personnel to inspect indicators and installed equipment without routinely opening the distribution cabinet. The door is finished in RAL 7035 light grey and incorporates a rod locking system with a standard 3 mm double-bit lock, providing a practical replacement or configuration option for compatible TwinLine enclosures.
With dimensions of approximately 789 mm wide × 1393 mm high × 27 mm deep, the TZT309 is designed for corresponding 3 PW, 9 GU TwinLine cabinet configurations. The door provides IP55 protection when correctly installed as part of the appropriate enclosure system and uses 180-degree door hinges for convenient access.
Key Advantages
- Purpose-designed transparent viewing door for ABB TwinLine enclosures.
- 3 PW width and 9 GU height configuration.
- Viewing panel enables inspection of internal equipment without routinely opening the cabinet.
- IP55 protection when correctly fitted to the appropriate enclosure system.
- RAL 7035 light grey finish for integration with TwinLine cabinets.
- Rod locking system with standard 3 mm double-bit lock.
Key Features
- ABB TwinLine accessory.
- Transparent viewing door construction.
- 3 PW field width.
- 9 GU height.
- Approximate dimensions of 789 × 1393 × 27 mm.
- IP55 ingress protection as part of the appropriate enclosure configuration.
- Door with integrated viewing panel.
- Rod locking mechanism.
- Standard 3 mm double-bit closure.
- 180° door hinges for convenient cabinet access.
- Powder-coated RAL 7035 light grey finish.
Protected Visibility for Electrical Distribution Equipment
Transparent enclosure doors provide convenient visibility of electrical equipment while maintaining the protective function of the surrounding distribution cabinet. This can be particularly useful where indicators, meters or equipment status must be checked regularly without unnecessary access to the internal electrical assembly.
The ABB TZT309 is designed specifically around the TwinLine enclosure platform. Its 3 PW by 9 GU format, viewing panel, locking mechanism and 180-degree hinges provide a dedicated door solution for compatible ABB low-voltage sub-distribution cabinets.
Typical Applications
- ABB TwinLine low-voltage distribution cabinets.
- Commercial electrical sub-distribution boards.
- Industrial electrical distribution assemblies.
- Distribution cabinets containing visible meters and indicators.
- Building services and infrastructure installations.
- Panel building applications requiring a transparent viewing door.
