Why Choose the ABB TZT209R Glass Door?

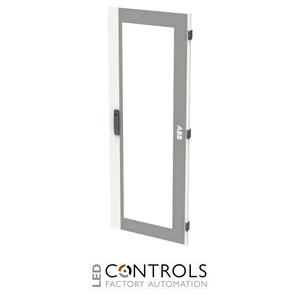

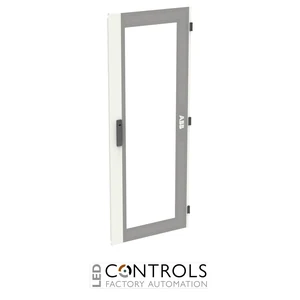

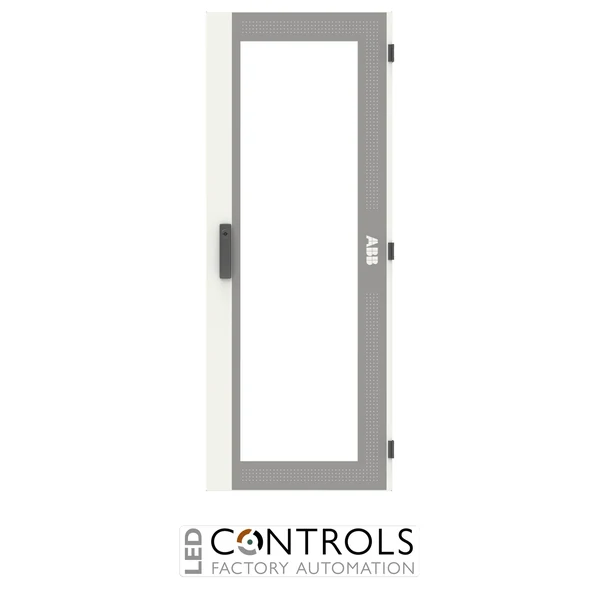

The ABB TZT209R is a robust right-hand transparent door with viewing glass designed for ABB TwinLine N sub-distribution enclosures. Supplied under ABB order code 2CPX010885R9999, this enclosure accessory provides clear visibility of installed electrical equipment while maintaining the protection required for professional power distribution installations.
Designed for compatible TwinLine wall-mounted cabinets, the TZT209R features a 2-panel-width (2PW) format and 9 GU height. The door is powder-coated in RAL 7035 light grey and incorporates a large viewing window, making it suitable for installations where operators need to inspect equipment without opening the enclosure.
The TZT209R is a right-hand door with a 180° opening angle, rod locking mechanism and standard 3 mm double-bit closure. Its IP55 protection rating supports dependable use as part of a compatible TwinLine enclosure system, while its double-door configuration is designed for the appropriate ABB cabinet arrangement.
Key Advantages
- Genuine ABB TwinLine N enclosure accessory for professional sub-distribution systems.
- Transparent viewing glass allows installed equipment to be inspected without opening the enclosure.
- Right-hand door configuration for compatible TwinLine cabinet arrangements.
- 2PW / 9 GU format for the specified TwinLine enclosure configuration.
- IP55 protection rating when correctly integrated into the compatible enclosure system.
- 180° door opening angle provides convenient access during installation and maintenance.
- Rod locking mechanism with a standard 3 mm double-bit closure.
- Powder-coated RAL 7035 light grey finish complements ABB TwinLine enclosures.
Key Features
- ABB TZT209R transparent enclosure door.
- ABB order code 2CPX010885R9999.
- 2PW / 9 GU configuration.
- Right-hand door with integrated viewing glass.
- Designed as part of a double-door arrangement.
- IP55 protection rating.
- 180° opening angle.
- Rod locking system for secure enclosure closure.
- Standard 3 mm double-bit lock.
- Powder-coated RAL 7035 finish.
- Designed for compatible ABB TwinLine N wall-mounted cabinets.
Clear Visibility and Reliable Enclosure Access
Viewing doors such as the ABB TZT209R provide convenient visual access to electrical equipment installed within a distribution enclosure. Operators can inspect indicators, switching devices and other visible components without opening the cabinet, helping simplify routine checks while retaining the enclosure's protective barrier.
As part of the ABB TwinLine N enclosure system, the TZT209R is designed for reliable mechanical integration with compatible wall-mounted cabinets. Its wide opening angle, secure rod locking arrangement and transparent viewing area make it well suited to electrical distribution installations where accessibility, equipment visibility and robust enclosure construction are important.
Typical Applications
- ABB TwinLine N sub-distribution enclosures.
- Electrical distribution and control cabinets.
- Commercial and industrial electrical installations.
- Building power distribution systems.
- Control and automation panels requiring visible equipment status.
- Electrical cabinets requiring a transparent right-hand access door.
