Why Choose the ABB TZT309L Glass Door?
The ABB TZT309L is a left-hand glass viewing door for ABB TwinLine distribution cabinets, designed to provide convenient visual access to equipment installed inside compatible low-voltage distribution enclosures. As part of ABB’s TwinLine sub-distribution accessory range, it is specifically configured for a 3 PW door width within a 5 PW, 9 GU cabinet arrangement.
The TZT309L forms the left-hand section of a double-door arrangement and incorporates a viewing window for observing meters, indicators and other visible equipment without opening the cabinet. Its powder-coated construction is finished in RAL 7035 and incorporates a rod-operated locking mechanism with a standard 3 mm double-bit lock.

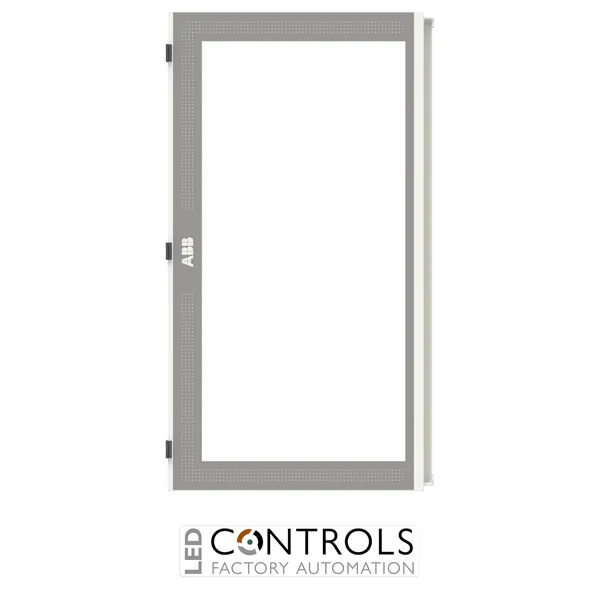

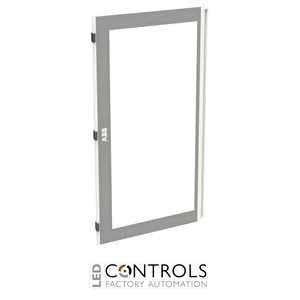

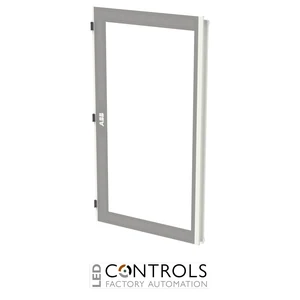

Designed for compatible ABB TwinLine TW/L/G509 wall cabinets, the TZT309L offers an opening angle of up to 180° and an IP55 protection rating. The door measures approximately 1393 mm high × 776 mm wide, including the door centre bar, and carries ABB order code 2CPX010893R9999.
Key Advantages
- Dedicated left-hand glass viewing door for ABB TwinLine cabinets.
- Designed for a 5 PW, 9 GU double-door cabinet configuration.
- Viewing window enables visual inspection while the cabinet remains closed.
- IP55 protection rating for compatible enclosure installations.
- 180° opening angle provides convenient access during installation and maintenance.
- Rod locking system with 3 mm double-bit standard lock.
Key Features
- ABB TwinLine glass viewing door range.
- Model TZT309L.
- Left-hand door for a double-door arrangement.
- 3 PW door width.
- 9 GU cabinet height.
- Integrated viewing window.
- 180° door opening angle.
- IP55 protection rating.
- Powder-coated RAL 7035 finish.
- Rod-operated locking mechanism with standard 3 mm double-bit lock.
- Designed for compatible TwinLine TW/L/G509 wall cabinets.
- ABB order code 2CPX010893R9999.
Convenient Viewing Access for Distribution Cabinets
Glass viewing doors allow operators and maintenance personnel to inspect meters, indicators and other visible electrical equipment without opening the distribution enclosure. This provides convenient routine observation while maintaining the physical barrier of the closed cabinet during normal operation.
The ABB TZT309L is specifically designed as the left-hand viewing door for a 5 PW by 9 GU TwinLine double-door configuration. Its large viewing area, 180° opening angle, rod-operated locking system and IP55 rating provide a practical manufacturer-matched solution for professional low-voltage sub-distribution installations.
Typical Applications
- ABB TwinLine TW/L/G509 wall cabinets.
- Low-voltage sub-distribution systems.
- 5 PW double-door electrical cabinet configurations.
- Electrical cabinets containing meters and monitoring equipment.
- Commercial and industrial electrical distribution installations.
- Cabinets requiring visual inspection of internally mounted equipment.
