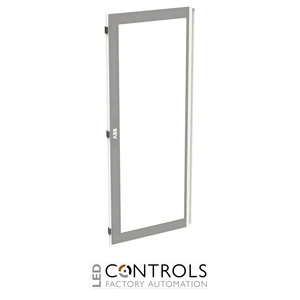

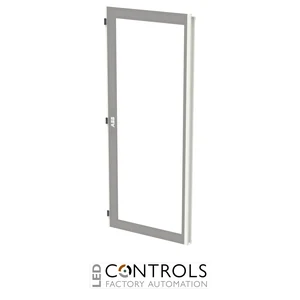

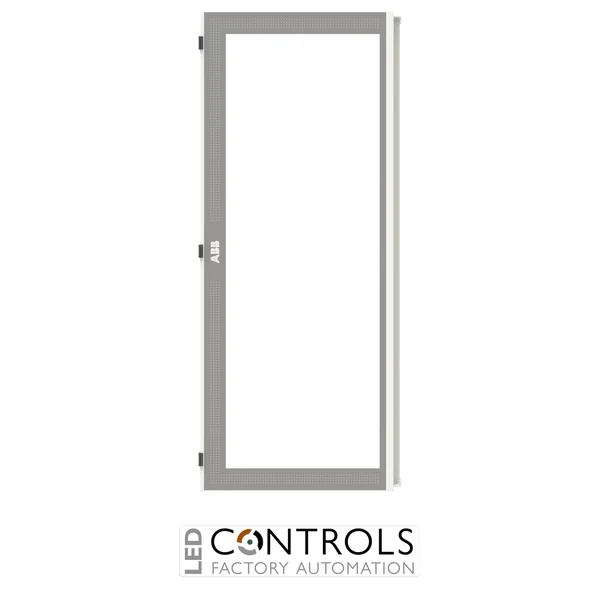

Why Choose the ABB TZT312L Left Glass Door?
The ABB TZT312L is a dedicated left-hand glass viewing door for ABB TwinLine distribution cabinets, designed to provide protected visual access to equipment installed inside compatible low-voltage distribution enclosures. As part of ABB’s TwinLine sub-distribution accessory range, it provides a 3 PW door width and 12 GU height for large floor-standing cabinet configurations.
The TZT312L forms the left-hand section of a double-door arrangement and incorporates a large transparent viewing area, allowing meters, indicators and other visible equipment to be inspected without opening the cabinet. Its powder-coated construction is finished in RAL 7035 and incorporates a rod-operated closure with a standard 3 mm double-bit lock.
Designed for compatible ABB TwinLine TW/L/G512 and TW/L/G612 cabinet configurations, the TZT312L features 180° door hinges for convenient access during installation and maintenance. The door has an external height of 1843 mm, a viewing area of 1668 × 590 mm and carries ABB order code 2CPX010894R9999.
Key Advantages
- Dedicated left-hand glass viewing door for ABB TwinLine cabinets.
- 3 PW door width and 12 GU height for large floor-standing cabinet arrangements.
- Large transparent viewing area enables visual inspection while the cabinet remains closed.
- Suitable as the left-hand door in compatible 5 PW and 6 PW double-door configurations.
- 180° door hinges provide convenient access during installation and servicing.
- Rod-operated closure with a 3 mm double-bit lock.
Key Features
- ABB TwinLine glass viewing door range.
- Model TZT312L.
- Left-hand door for double-door cabinet arrangements.
- 3 PW door width.
- 12 GU height.
- Large integrated transparent viewing area.
- 180° door hinge opening.
- Powder-coated RAL 7035 finish.
- Rod-operated closure with standard 3 mm double-bit lock.
- Suitable for compatible TwinLine TW/L/G512 and TW/L/G612 cabinets.
- ABB order code 2CPX010894R9999.
Convenient Viewing Access for Large Distribution Cabinets
Glass viewing doors allow operators and maintenance personnel to inspect meters, indicators and other visible electrical equipment while keeping the distribution enclosure closed. This supports convenient routine observation and reduces unnecessary access to equipment installed within the cabinet.
The ABB TZT312L is specifically dimensioned as a 3 PW left-hand door for 12 GU TwinLine floor-standing cabinet arrangements. Its large viewing area, 180° hinges and secure rod-operated closure provide a practical manufacturer-matched solution for professional low-voltage sub-distribution systems.
Typical Applications
- ABB TwinLine floor-standing distribution cabinets.
- Compatible TwinLine TW/L/G512 and TW/L/G612 configurations.
- Low-voltage sub-distribution systems.
- Large double-door electrical cabinet assemblies.
- Electrical cabinets containing meters and monitoring equipment.
- Commercial and industrial distribution installations requiring visual equipment inspection.
