Why Choose the ABB TZM112 Mounting Plate?

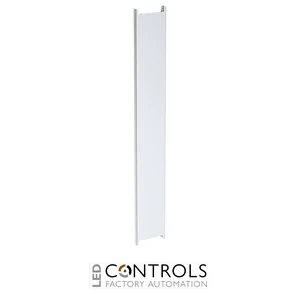

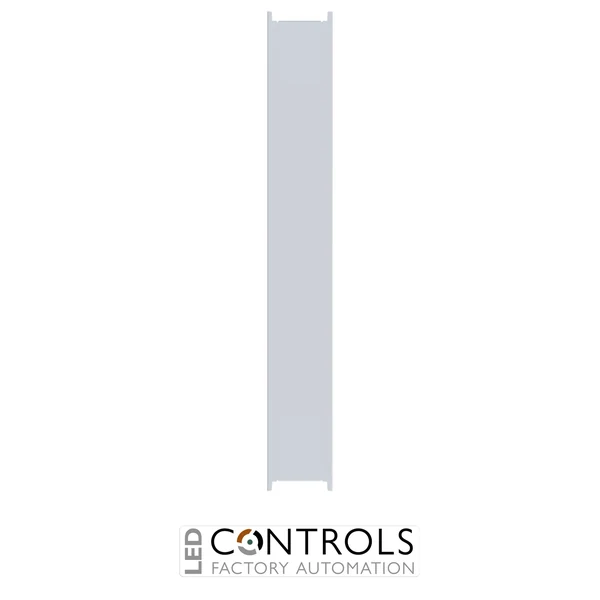

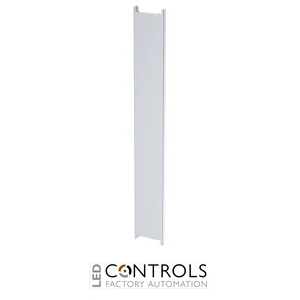

The ABB TZM112 is a robust 1PW 12GU mounting plate designed for equipment installation within compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX010940R9999, it provides a secure internal mounting surface for electrical components and assemblies.
As part of the ABB DESUJ Sub Distribution range, the TZM112 is designed for use with compatible TwinLine cabinet systems. Its galvanised sheet-steel construction provides the mechanical strength required for dependable equipment mounting while helping protect the plate surface during installation and service.
The TZM112 is manufactured from 2 mm sheet steel and is supplied unmounted for flexible cabinet configuration. With a nominal external size of 1800 × 246 mm, it is configured for a 1PW, 12GU cabinet arrangement and provides a large vertical mounting area for electrical equipment.
Key Advantages
- Purpose-designed mounting plate for ABB sub-distribution cabinets.
- 1PW 12GU configuration for compatible cabinet layouts.
- Strong 2 mm sheet-steel construction.
- Galvanised finish provides a durable mounting surface.
- Large vertical plate area for flexible electrical equipment installation.
- Supplied unmounted for convenient cabinet configuration and assembly.
Key Features
- ABB TZM112 mounting plate.
- ABB order code 2CPX010940R9999.
- 1PW width and 12GU height configuration.
- Designed for compatible ABB TwinLine cabinet systems.
- Manufactured from 2 mm galvanised sheet steel.
- 1800 mm nominal height.
- 246 mm width.
- Supplied as an unmounted mounting plate.
Reliable Equipment Mounting for Distribution Cabinets
Mounting plates provide a stable internal surface for installing electrical components within distribution and control cabinets. The ABB TZM112 enables equipment to be positioned securely while supporting an organised cabinet layout and straightforward assembly.
Its galvanised steel construction and full-height format make the TZM112 suitable for demanding electrical installation environments. As an unmounted accessory, it gives panel builders and installers flexibility when configuring compatible ABB sub-distribution cabinets for specific applications.
Typical Applications
- ABB sub-distribution cabinet assemblies.
- Compatible TwinLine cabinet systems.
- Electrical distribution equipment mounting.
- Switchgear and protective-device installations.
- Control and automation component mounting.
- Panel building and cabinet configuration.
