Why Choose the ABB TZM312 Mounting Plate?

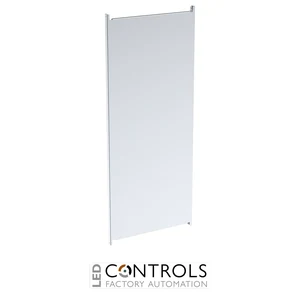

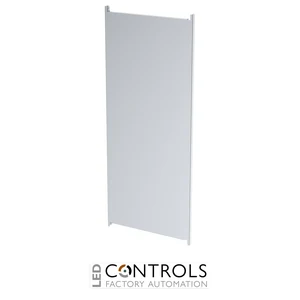

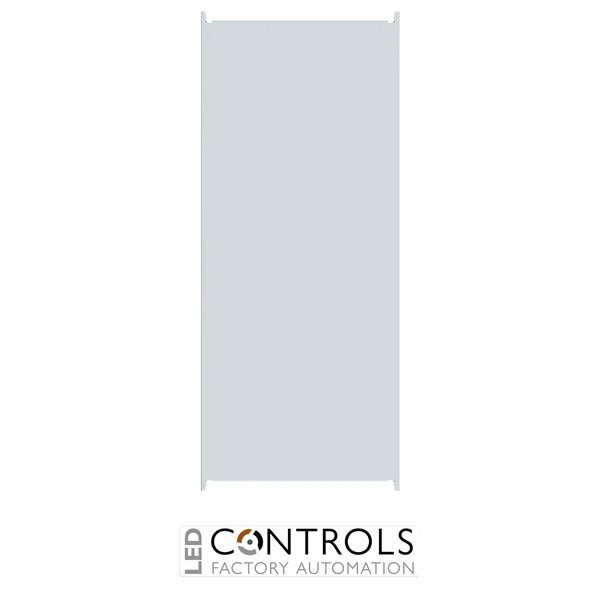

The ABB TZM312 is a robust galvanised steel mounting plate designed for compatible ABB TwinLine electrical enclosures. With a 3 panel-width (3PW) format and 12 grid-unit (12GU) height, it provides a strong internal mounting surface for electrical and control equipment in professional distribution installations.
Designed for compatible ABB TwinLine TW/L/G312 cabinets, the TZM312 is supplied unmounted so that it can be installed according to the required enclosure configuration. Its solid, non-perforated construction provides a versatile surface for positioning suitable electrical components and assemblies.
The TZM312 measures 1800 mm high × 746 mm wide × 2 mm thick and is manufactured from galvanised sheet steel. ABB identifies the product under order code 2CPX010942R9999, providing precise identification for specification, replacement and procurement.
Key Advantages
- Purpose-designed mounting plate for ABB TwinLine enclosures.
- 3PW × 12GU format for compatible cabinet configurations.
- Strong 2 mm sheet-steel construction.
- Galvanised surface protection for durable enclosure installations.
- Solid, non-perforated surface provides flexibility for equipment mounting.
- Supplied unmounted for installation according to the required cabinet configuration.
Key Features
- ABB TwinLine enclosure accessory.
- Mounting plate for electrical distribution enclosures.
- 3 panel widths (3PW).
- 12 grid units (12GU).
- 1800 mm height.
- 746 mm width.
- 2 mm material thickness.
- Galvanised sheet-steel construction.
- Non-perforated mounting surface.
- Suitable for compatible TwinLine TW/L/G312 cabinets.
- ABB order code 2CPX010942R9999.
Reliable Equipment Mounting for Electrical Distribution Enclosures
Mounting plates provide a secure internal surface for installing electrical components, control equipment and associated assemblies inside distribution enclosures. A solid steel mounting plate gives panel builders flexibility when positioning equipment to suit the requirements of a particular installation.
The ABB TZM312 is specifically designed for compatible TwinLine cabinets and combines a substantial 1800 × 746 mm mounting area with 2 mm galvanised sheet-steel construction. This makes it a practical internal mounting solution for professional electrical distribution and panel-building projects.
Typical Applications
- ABB TwinLine electrical enclosures.
- Compatible TwinLine TW/L/G312 cabinets.
- Electrical sub-distribution boards.
- Industrial control and automation cabinets.
- Switchgear and panel-building installations.
- Mounting electrical components and equipment within compatible cabinets.
