Why Choose the ABB TZ432 Centre Support Rail?

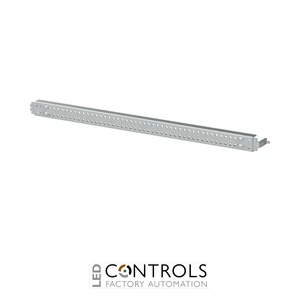

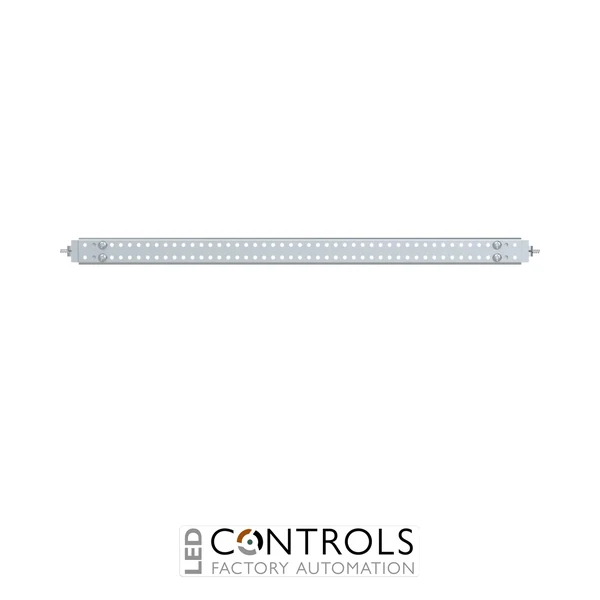

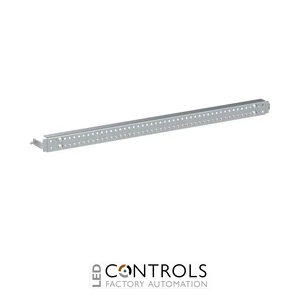

The ABB TZ432 is a purpose-designed centre support rail for ABB TwinLine floor-standing cabinets. With a 2 panel-width (2PW) format corresponding to a field width of 500 mm, it provides structural support for compatible internal mounting arrangements in professional electrical distribution enclosures.
Designed for mounting inside the cabinet, the TZ432 is supplied with the required mounting brackets. It forms part of ABB's coordinated TwinLine accessory system and can be used when configuring suitable floor-standing cabinets for distribution equipment, mounting plates and other compatible internal assemblies.
Installation of the TZ432 additionally requires two mounting strips, selected as ABB TZ601, TZ602 or TZ603 according to the cabinet depth. ABB identifies the TZ432 under order code 2CPX010961R9999, ensuring precise identification for specification, replacement and procurement.
Key Advantages
- Purpose-designed centre support rail for ABB TwinLine cabinets.
- 2PW format corresponding to a 500 mm field width.
- Provides additional support for compatible internal cabinet arrangements.
- Mounting brackets are included with the centre support rail.
- Compatible with depth-specific ABB mounting strips for flexible cabinet configurations.
- ABB-engineered accessory for professional sub-distribution and panel-building installations.
Key Features
- ABB TwinLine enclosure accessory.
- Centre / middle support rail for floor-standing cabinets.
- 2 panel widths (2PW).
- 500 mm field width.
- Designed for installation inside compatible cabinets.
- Mounting brackets included.
- Requires two additional mounting strips according to cabinet depth.
- Compatible mounting strips include TZ601, TZ602 or TZ603.
- ABB order code 2CPX010961R9999.
Reliable Internal Support for Electrical Distribution Cabinets
Centre support rails provide additional structural mounting support inside floor-standing electrical cabinets, helping panel builders configure internal equipment and mounting assemblies according to the required field arrangement. Using enclosure-specific accessories ensures the support structure integrates correctly with the cabinet system.
The ABB TZ432 is designed around a 500 mm, 2PW field width and works with depth-specific mounting strips. This coordinated approach allows the support rail to be incorporated into compatible TwinLine cabinets while accommodating different cabinet depths and internal configurations.
Typical Applications
- ABB TwinLine floor-standing cabinets.
- Electrical sub-distribution enclosures.
- Internal cabinet support structures.
- Mounting plate and equipment support arrangements.
- Industrial and commercial electrical distribution panels.
- Panel-building and switchgear installations.
