Why Choose the ABB TZ434 Centre Support Rail?

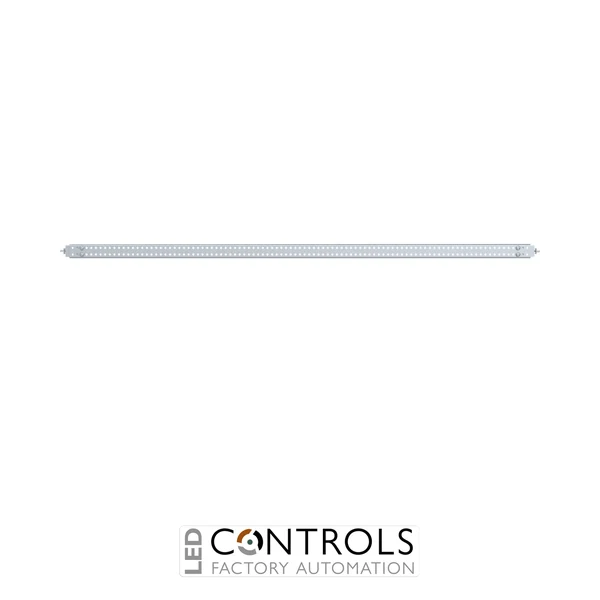

The ABB TZ434 is a robust centre support rail for ABB TwinLine electrical cabinets, designed to provide additional internal mounting support within compatible enclosure systems. With a 4 PW field width of 1000 mm, it is intended for professional distribution-board and switchgear installations requiring a secure central support structure.

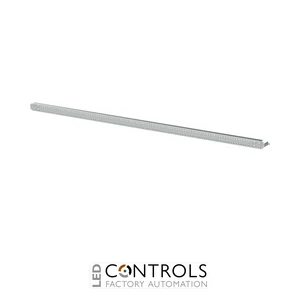

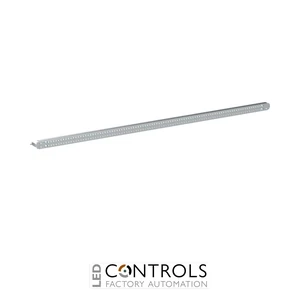

As part of the ABB TwinLine enclosure system, the TZ434 is supplied as an unmounted kit for installation within compatible wall-mounted and floor-standing cabinets. The support rail uses a galvanised steel C-profile construction and screw mounting, providing a durable mechanical foundation for organised internal cabinet assemblies.
The TZ434 has nominal dimensions of approximately 994 mm wide × 30 mm high × 40 mm deep. Two additional mounting strips are required for installation, selected from TZ601, TZ602 or TZ603 according to the cabinet depth. ABB order code 2CPX010963R9999 provides precise identification for specification, procurement and replacement.
Key Advantages
- Purpose-designed centre support rail for ABB TwinLine cabinets.
- 4 PW / 1000 mm field width for compatible enclosure configurations.
- Durable galvanised steel C-profile construction.
- Provides additional structural support for internal cabinet mounting arrangements.
- Suitable for compatible TwinLine wall-mounted and floor-standing cabinets.
- Uses depth-specific TZ601, TZ602 or TZ603 mounting strips for installation.
Key Features
- ABB TwinLine enclosure accessory.
- Model designation TZ434.
- Centre support rail configuration.
- Field width 4 = 1000 mm.
- Nominal external width of 994 mm.
- 30 mm profile height.
- 40 mm depth.
- Galvanised steel construction.
- Screw-mounted installation.
- Supplied as an unmounted kit.
Reliable Internal Support for TwinLine Cabinets
Centre support rails provide additional mechanical mounting structure inside electrical cabinets, helping create a secure and organised framework for modular distribution equipment and internal mounting assemblies. Matching the support rail to the cabinet field width ensures compatibility with the enclosure structure and associated mounting components.
The ABB TZ434 is specifically designed for a 4 PW / 1000 mm field width. Together with two appropriate depth-specific mounting strips, its galvanised steel C-profile provides a coordinated support solution for professional TwinLine cabinet installations.
Typical Applications
- ABB TwinLine electrical cabinets.
- Compatible wall-mounted and floor-standing cabinets.
- Electrical sub-distribution assemblies.
- Modular switchboard construction.
- Internal mounting structures for electrical equipment.
- Commercial and industrial power distribution installations.
- Panel building and cabinet configuration projects.
