Why Choose the ABB TZ435 Centre Support Rail?

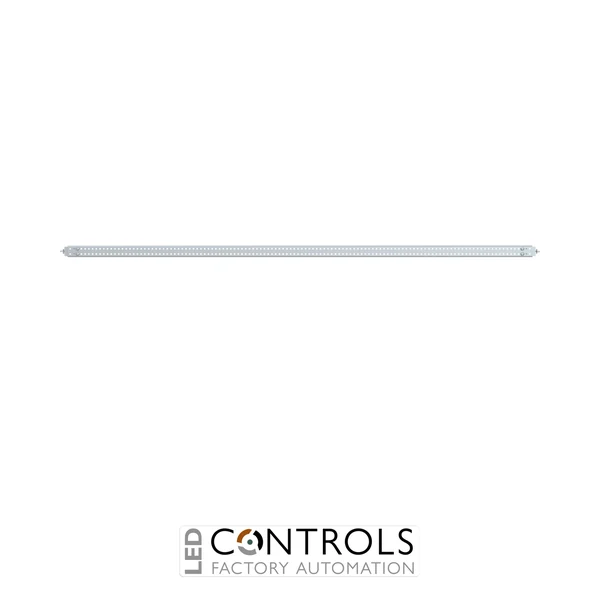

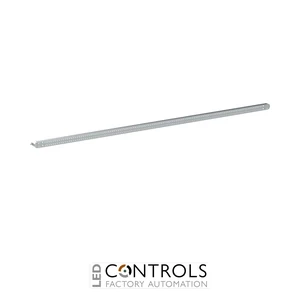

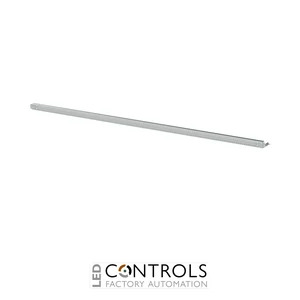

The ABB TZ435 is a robust centre support rail for 5PW cabinet configurations, designed for fastening within compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX010964R9999, it provides additional structural support for mounting equipment and internal cabinet assemblies.
As part of the ABB DESUJ Sub Distribution range, the TZ435 is designed for compatible TwinLine wall-mounted and floor-standing cabinets. Its C-profile rail construction provides a dependable mechanical mounting point while allowing panel builders to configure larger distribution enclosures efficiently.
The TZ435 is specified for a 5PW field width of 1250 mm and is supplied as an unmounted kit. Mounting brackets are included with the centre support rail, while two additional mounting rails are required for installation, selected according to the depth of the cabinet.
Key Advantages
- Purpose-designed centre support rail for 5PW cabinet configurations.
- Suitable for a 1250 mm field width.
- Provides additional structural support within compatible distribution cabinets.
- C-profile rail construction for reliable mechanical mounting.
- Suitable for compatible ABB TwinLine wall-mounted and floor-standing cabinets.
- Supplied unmounted with mounting brackets for flexible cabinet assembly.
Key Features
- ABB TZ435 centre support rail.
- ABB order code 2CPX010964R9999.
- 5PW field-width configuration.
- Designed for a 1250 mm cabinet field width.
- C-profile support-rail construction.
- Suitable for compatible ABB TwinLine cabinet systems.
- Mounting brackets included with the support rail.
- Requires two additional mounting rails selected according to cabinet depth.
Reliable Structural Support for Distribution Cabinets
Centre support rails provide additional internal mounting and structural support in larger electrical distribution cabinets. The ABB TZ435 is specifically sized for a 5PW arrangement, allowing equipment and mounting systems to be securely integrated across a 1250 mm field width.
For installation, the TZ435 is used with two additional mounting rails selected according to cabinet depth, such as compatible TZ601, TZ602 or TZ603 rails. This modular arrangement enables panel builders to adapt the internal support structure to the specific TwinLine cabinet configuration.
Typical Applications
- ABB sub-distribution cabinet assemblies.
- Compatible TwinLine wall-mounted cabinets.
- Compatible TwinLine floor-standing cabinets.
- 5PW electrical distribution cabinet configurations.
- Internal cabinet mounting structures.
- Panel building and switchgear installations.
