Why Choose the ABB ZE335 6-Module Keystone Patch Panel?

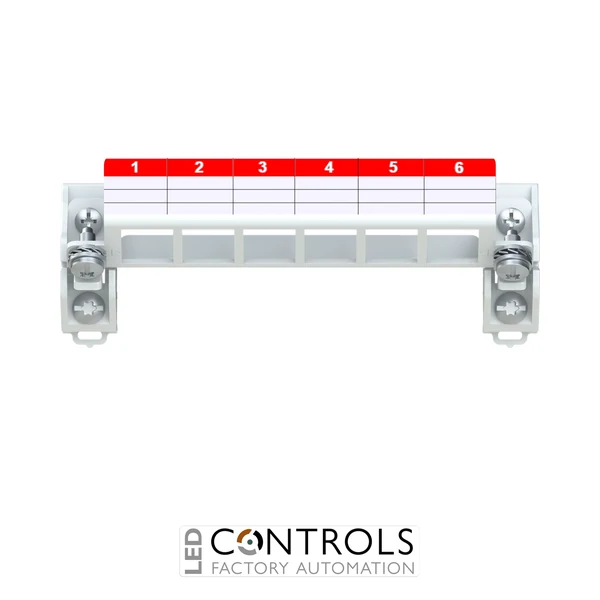

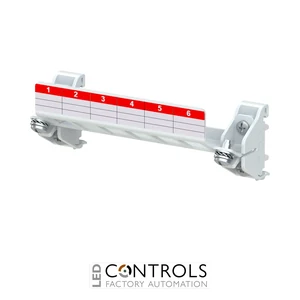

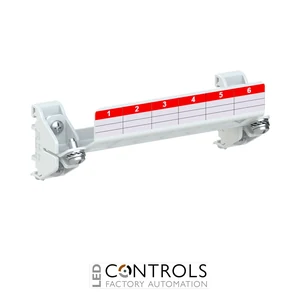

The ABB ZE335 (2CPX031423R9999) is a compact 6-module keystone patch panel designed for organising communication connections within ABB media enclosures and sub-distribution systems. Part of ABB's DESUJ Sub Distribution product group and UK600 accessory range, it provides six positions for standard keystone communication modules such as RJ45 and coaxial connectors.
The ZE335 provides a practical mounting solution for structured cabling and multimedia installations. Its click-in mounting system with insulating blocks supports quick installation, while the empty panel format allows installers to select the required compatible keystone modules for each application.
Designed for direct or insulated installation on EDF rails, DIN rails or mounting plates, the ZE335 offers flexible integration within electrical and multimedia distribution equipment. Its sheet-steel construction, compact 138 × 53 × 63 mm dimensions and low 0.122 kg net weight make it particularly suitable for space-efficient communications installations.
Key Advantages
- Compact 6-module patch panel for keystone communication modules.
- Suitable for RJ45, coaxial and other compatible keystone-format connections.
- Supports direct or insulated mounting on EDF rails, DIN rails or mounting plates.
- Quick installation using a practical click-in mounting mechanism.
- Robust sheet-steel construction for dependable enclosure installation.
- Designed for integration with ABB media enclosures and sub-distribution equipment.
Key Features
- ABB ZE335 interior fitting system.
- 6 keystone module positions.
- Empty patch panel suitable for configurable communication installations.
- Compatible with communication modules including RJ45 and coaxial connectors.
- Click-in mechanism with insulating mounting blocks.
- Suitable for EDF rail, DIN rail and mounting-plate installation.
- Sheet-steel construction.
- Compact dimensions of 138 × 53 × 63 mm.
Flexible Communication Distribution for Media Enclosures
Keystone patch panels provide a modular method of organising network, data and multimedia connections inside electrical and communications enclosures. Individual compatible modules can be selected according to the installation requirements, allowing different communication interfaces to be grouped neatly within one panel.
The ABB ZE335 is designed specifically for compact distribution and media applications. Its six-position layout, insulated click-in mounting arrangement and compatibility with multiple mounting methods make it suitable for structured cabling installations where reliable organisation and efficient use of enclosure space are important.
Typical Applications
- Structured network cabling installations.
- RJ45 Ethernet connection distribution.
- Coaxial and multimedia connection systems.
- Residential and commercial media enclosures.
- ABB UK600 distribution and multimedia systems.
- Electrical cabinets requiring integrated communication connections.
