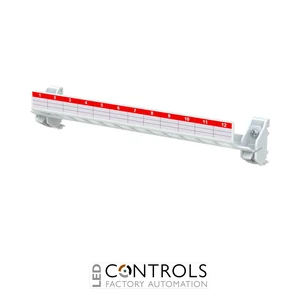

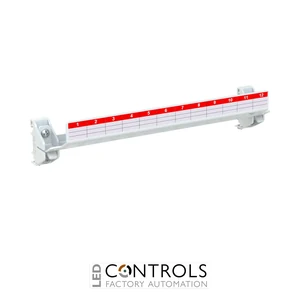

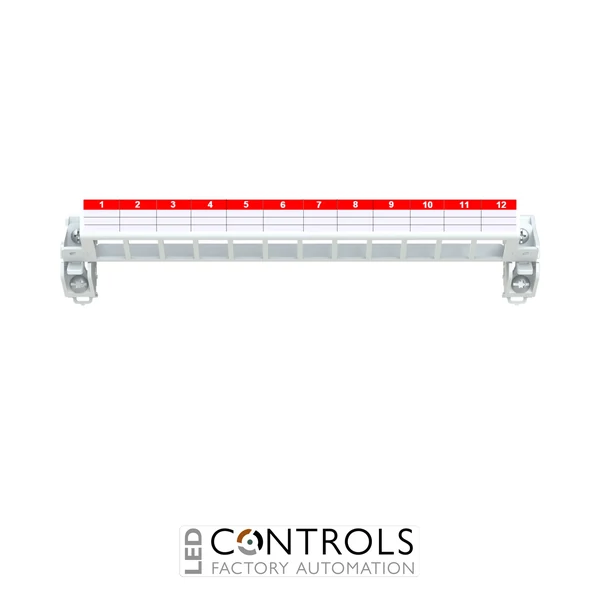

2CPX031424R9999 ABB ZE336 Patch Panel 12 Keystone Modules

2CPX031424R9999 ABB ZE336 Patch Panel 12 Keystone Modules

ABB ZE336 is a compact steel patch panel for 12 Keystone communication modules with flexible EDF-rail, DIN-rail or mounting-plate installation for structured media and data cabling.

SKU: 2CPX031424R9999Alt SKU: ZE336MPN: 2CPX031424R9999
Price
List Price £79.10 ex VAT
Your Price (ex VAT)
£79.10
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £79.10
Trade pricing is personalised to your account

Manufacturer Lead Time

£79.10

Why Choose the ABB ZE336 Patch Panel?

The ABB ZE336 is a compact 12-module Keystone patch panel designed for structured communication and multimedia installations within compatible ABB distribution and media enclosures. The panel provides twelve positions for Keystone-format communication modules, supporting organised termination of data, telecommunications and multimedia connections.

Designed as an empty patch panel, the ZE336 can accommodate compatible communication modules such as RJ45 and coaxial modules. Its flexible mounting arrangement supports direct or insulated installation on an EDF rail, DIN rail or suitable mounting plate, making it adaptable to a range of ABB enclosure configurations.

The ZE336 features a convenient click-in mounting mechanism with insulating blocks for fast installation on DIN rails. Measuring 246 mm wide × 53 mm high × 63 mm deep, the steel panel provides a compact 12-position solution and carries ABB order code 2CPX031424R9999.

Key Advantages

  • Provides capacity for 12 Keystone communication modules.
  • Suitable for compatible RJ45, coaxial and other Keystone-format modules.
  • Supports organised communication and multimedia cabling inside electrical enclosures.
  • Click-in installation simplifies mounting on compatible DIN rails.
  • Suitable for direct or insulated mounting on EDF rail, DIN rail or mounting plate.
  • Compact 246 × 53 × 63 mm construction for efficient enclosure integration.

Key Features

  • ABB ZE media accessory range.
  • Model ZE336.
  • 12 Keystone-module positions.
  • Empty patch-panel configuration for user-selected communication modules.
  • Compatible with suitable RJ45 and coaxial modules.
  • Click-in mechanism for quick installation.
  • Insulating blocks for DIN-rail mounting.
  • Direct or insulated installation options.
  • Steel construction.
  • 246 mm width, 53 mm height and 63 mm depth.
  • ABB order code 2CPX031424R9999.

Organised Communication Cabling for Media Enclosures

Patch panels provide a structured termination point for communication cabling, helping installers organise network, telecommunications and multimedia connections within a distribution or media enclosure. Modular Keystone positions allow individual connection modules to be selected according to the required communication system.

The ABB ZE336 provides 12 Keystone positions in a compact steel assembly. Its flexible EDF-rail, DIN-rail and mounting-plate installation options make it suitable for professional media distribution systems where orderly cable termination and modular communication connectivity are required.

Typical Applications

  • Structured Ethernet and data cabling installations.
  • Communication and multimedia distribution enclosures.
  • RJ45 network connection modules.
  • Compatible coaxial communication modules.
  • Residential and commercial media distribution systems.
  • ABB electrical enclosures requiring organised communication cabling.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J Sub-distribution
Product type Keystone patch panel / communication module holder
ABB order code 2CPX031424R9999
Module capacity 12 Keystone modules
DIN place units 12
Configuration Empty patch panel
Compatible modules Keystone communication modules
Mounting EDF rail, DIN rail or mounting plate
Mounting mechanism Click-in with insulating blocks for DIN rail
Material Steel
Surface finish Galvanised
Width 246 mm
Height 53 mm
Depth 63 mm
Net weight 0.192 kg
EAN 4011617314240
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB ZE336 used for?

The ABB ZE336 is an empty communication patch panel designed to hold up to 12 compatible Keystone modules for structured data, telecommunications and multimedia cabling.

How many modules can the ABB ZE336 accommodate?

The ZE336 provides positions for 12 Keystone modules.

Can the ABB ZE336 be used with RJ45 modules?

Yes. The ZE336 is designed for compatible Keystone-format communication modules, including suitable RJ45 connectors and other communication modules.

How is the ABB ZE336 mounted?

The ZE336 can be installed directly or with insulation on a compatible EDF rail, DIN rail or mounting plate, with a click-in mechanism and insulating blocks provided for DIN-rail installation.

What are the dimensions of the ABB ZE336?

The ZE336 measures 246 mm wide × 53 mm high × 63 mm deep.

Are communication modules supplied with the ZE336?

The ZE336 is an empty patch panel; compatible Keystone communication modules are selected separately according to the installation requirements.

What is the ABB order code for the ZE336?

The ABB order code for the ZE336 12-module patch panel is 2CPX031424R9999.
