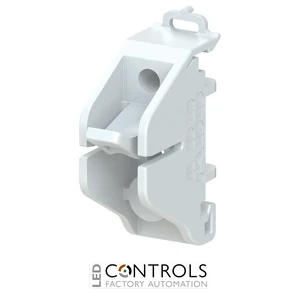

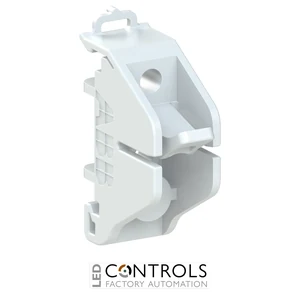

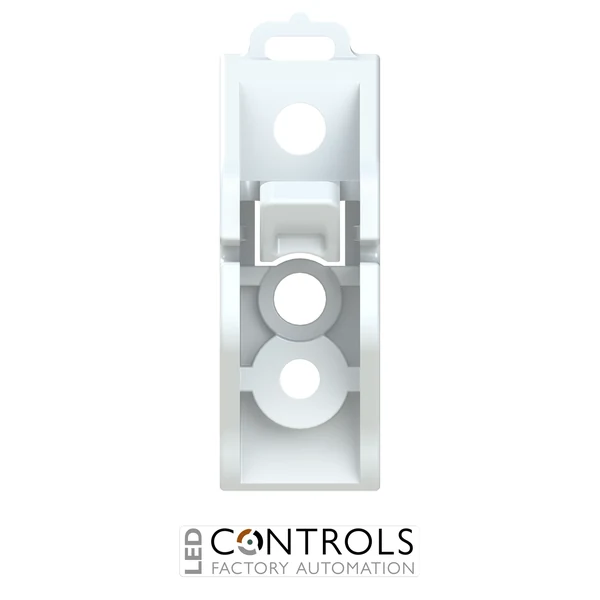

2CPX031426R9999 ABB ZE338 Patch Panel Holder Brackets

2CPX031426R9999 ABB ZE338 Patch Panel Holder Brackets

ABB ZE338 is a compact plastic patch panel holder bracket with a click-on DIN rail mounting mechanism for compatible ABB media enclosure and structured communication installations.

SKU: 2CPX031426R9999Alt SKU: ZE338MPN: 2CPX031426R9999
Price
List Price £27.29 ex VAT
Your Price (ex VAT)
£27.29
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £27.29
Trade pricing is personalised to your account

Manufacturer Lead Time

£27.29

Why Choose the ABB ZE338 Patch Panel Holder Brackets?

The ABB ZE338 is a dedicated patch panel holder bracket set for ABB media enclosures, designed to support fast and secure installation of compatible patch panels in structured communication and multimedia distribution systems. As part of ABB’s ZE media accessory range, it provides the mounting interface required to integrate compatible patch panels into suitable enclosure assemblies.

The ZE338 uses a practical click-on locking mechanism for DIN rail installation, helping reduce installation time while providing a secure mounting point for the patch panel. The holder brackets are particularly suited to ABB media distribution applications where network, telecommunications, coaxial or other communication connections are organised through modular patch panels.

Each ZE338 holder has compact dimensions of 16 mm width × 40 mm height × 63 mm depth and is manufactured from insulating plastic. The product is identified by ABB order code 2CPX031426R9999 and is designed as a manufacturer-matched mounting accessory for ABB patch panel installations.

Key Advantages

  • Purpose-designed holder brackets for ABB patch panels.
  • Click-on DIN rail mounting supports quick and straightforward installation.
  • Provides a secure mounting interface between compatible patch panels and the enclosure installation system.
  • Compact 16 × 40 × 63 mm holder dimensions minimise required installation space.
  • Insulating plastic construction suited to media enclosure applications.
  • ABB-manufactured accessory for consistent integration with compatible communication distribution equipment.

Key Features

  • ABB ZE media accessory range.
  • Model ZE338.
  • Product type: patch panel holder / mounting bracket.
  • Designed for compatible ABB patch panels.
  • DIN rail installation.
  • Easy and time-saving click-on locking mechanism.
  • Plastic construction.
  • Compact holder dimensions.
  • Suitable for ABB media enclosure installations.
  • ABB order code 2CPX031426R9999.

Efficient Patch Panel Mounting for Media Enclosures

Patch panel mounting brackets provide the mechanical interface needed to position communication patch panels securely inside media and distribution enclosures. A dedicated mounting system helps keep data and multimedia terminations organised while allowing patch panels to be installed in a predictable and serviceable position.

The ABB ZE338 is designed specifically for this purpose, using a click-on DIN rail mechanism for quick installation. When combined with compatible ABB patch panels and communication modules, it supports structured network, telecommunications and multimedia cabling within professional residential and commercial distribution systems.

Typical Applications

  • ABB media enclosure patch panel installations.
  • Structured Ethernet and data cabling systems.
  • Telecommunications distribution enclosures.
  • Multimedia and home-network distribution systems.
  • DIN rail-mounted communication assemblies.
  • Residential and commercial structured cabling installations.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J Sub-distribution
Series ZE Media Accessories
Product type Patch panel holder / mounting bracket
ABB order code 2CPX031426R9999
Accessory type Mounting bracket
Enclosure application Interior fitting system / media enclosure
Mounting DIN rail
Mounting method Click-on locking mechanism
Material Plastic
Width 16 mm
Height 40 mm
Depth 63 mm
Net weight 0.032 kg
EAN 4011617314264
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB ZE338 used for?

The ABB ZE338 is a patch panel holder bracket used to mount compatible ABB patch panels securely within media enclosure installations.

How is the ABB ZE338 installed?

The ZE338 is designed for DIN rail installation and uses a click-on locking mechanism for quick and convenient mounting.

What are the dimensions of the ABB ZE338?

Each ZE338 holder measures approximately 16 mm wide × 40 mm high × 63 mm deep.

What material is the ABB ZE338 made from?

The ZE338 patch panel holder is manufactured from plastic, providing an insulating mounting solution for compatible media enclosure installations.

Can the ZE338 be used with ABB communication patch panels?

Yes. The ZE338 is specifically designed as a holder for compatible ABB patch panels used for structured communication and multimedia connections.

Is the ZE338 suitable for media distribution enclosures?

Yes. ABB lists the ZE338 as a common accessory designed for media enclosure applications and patch panel mounting.

What is the ABB order code for the ZE338?

The ABB order code for the ZE338 patch panel holder is 2CPX031426R9999.

Trusted by Electrical and Data Installers

ABB media enclosure accessories provide electrical contractors, panel builders and communication-system installers with manufacturer-matched components for organised data, multimedia and structured low-voltage cabling installations.
