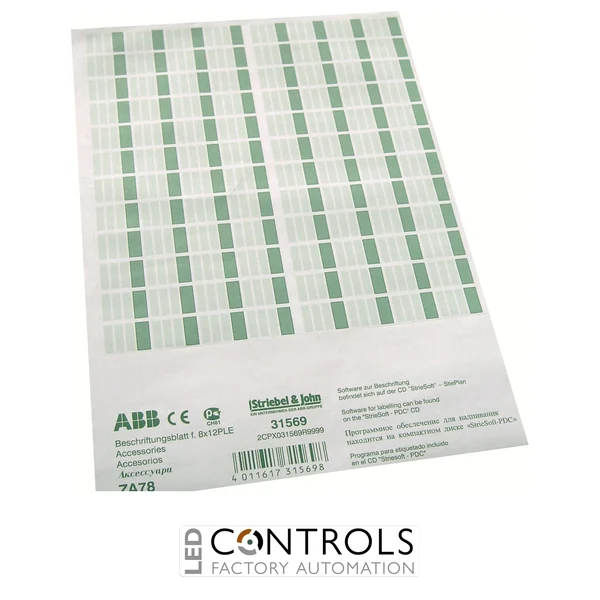

Why Choose the ABB ZA78 Labelling System?
The ABB ZA78 is a dedicated self-adhesive labelling system for 8 × 12 PLE configurations, designed to provide clear and organised identification within electrical distribution assemblies. Supplied under ABB order code 2CPX031569R9999, it forms part of ABB's accessories for professional sub-distribution and CombiLine N systems.
Designed for use with distribution panels, combination sets and CombiLine modules, the ZA78 provides a convenient method of identifying circuits and installed equipment. Clear labelling makes electrical assemblies easier to understand during commissioning, routine operation, inspection and maintenance.
The ZA78 is self-adhesive for straightforward installation and is specifically configured for 8 × 12 PLE. It also supports convenient label printing using the labelling module within ABB StriePlan planning software, helping panel builders produce neat and consistent identification for compatible distribution systems.
Key Advantages
- Purpose-designed labelling system for 8 × 12 PLE electrical distribution configurations.
- Self-adhesive construction enables straightforward application.
- Suitable for distribution panels, combination sets and CombiLine modules.
- Helps provide clear identification of circuits and equipment within distribution assemblies.
- Supports professional, consistent labelling for panel building and electrical installation work.
- Compatible with label output using the ABB StriePlan planning software labelling module.
- Genuine ABB accessory designed for coordinated sub-distribution systems.
Key Features
- ABB ZA78 labelling system.
- ABB order code 2CPX031569R9999.
- Designed specifically for 8 × 12 PLE.
- Self-adhesive labelling sheet.
- Suitable for distribution panels.
- Suitable for combination sets.
- Suitable for ABB CombiLine modules.
- Supports label printing through the StriePlan software labelling module.
- Multicoloured labelling format.
- Supplied as a single labelling system unit.
Clear Identification for Electrical Distribution Systems
Accurate labelling is an important part of a well-organised electrical distribution system. The ABB ZA78 allows circuits and installed equipment to be clearly identified, helping electricians, panel builders and maintenance personnel understand the arrangement of a distribution assembly and locate relevant equipment efficiently.
As a dedicated accessory for ABB distribution systems, the ZA78 integrates neatly with compatible distribution panels, combination sets and CombiLine modules. Its self-adhesive format simplifies installation, while support for StriePlan label printing helps create a consistent and professional finish across electrical panels.
Typical Applications
- ABB CombiLine N distribution systems.
- Electrical distribution panels.
- Combination sets and modular panel assemblies.
- Sub-distribution boards.
- Circuit and equipment identification.
- Commercial and industrial electrical panels.
- Professional panel building and switchboard installations.
