Why Choose the ABB WR28 Mounting Frame?
The ABB WR28 is a robust WR mounting frame for ABB floor-standing and modular switchgear cabinets, designed to provide a structured internal support system for electrical distribution equipment. With a 2 PW field width, overall height 8 configuration and 12 grid units, it provides a versatile framework for professional low-voltage cabinet assemblies.

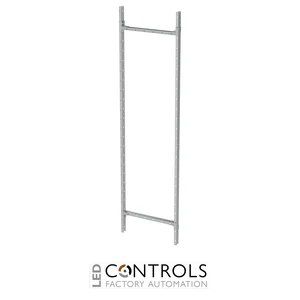

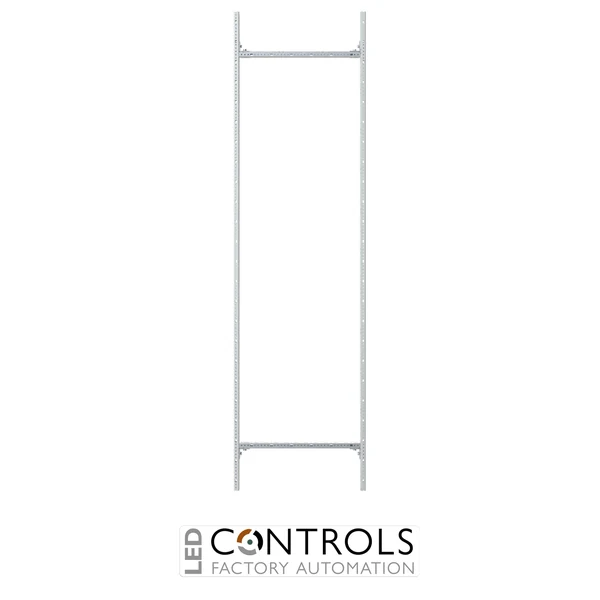

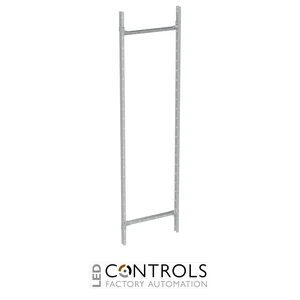

The WR28 consists of vertical WR profile rails combined with cross-profile rails, creating a stable framework for free-form equipment installation and compatible modular assemblies. Its galvanised steel construction provides dependable mechanical support, while screw fixing enables secure integration into suitable ABB cabinet systems.
With an overall length of 1800 mm, the WR28 is suitable for compatible floor-standing and modular cabinets from 225 mm cabinet depth. It can also support EDF installation sets and modular equipment arrangements where the appropriate complementary ABB installation components are used.
Key Advantages
- Dedicated WR mounting frame for ABB distribution and switchgear cabinets.
- 2 PW field width provides 288 space units for compatible cabinet layouts.
- Overall height 8 with 12 grid units for structured equipment installation.
- Robust galvanised steel construction for dependable mechanical support.
- Vertical and cross-profile rail construction supports flexible cabinet configuration.
- Suitable for compatible floor-standing and modular cabinets from 225 mm depth.
Key Features
- ABB WR mounting frame system.
- Model WR28.
- 2 PW field width.
- 288 space units.
- 12 grid units.
- Overall height 8.
- 1800 mm frame length.
- Vertical WR profile rails with cross-profile rails.
- 40 mm support rail profile height.
- Galvanised steel construction.
- Screw-fixed installation.
- Suitable for free-form equipment mounting and compatible modular installation systems.
Flexible Internal Mounting for Distribution Cabinets
Mounting frames provide the structural foundation required to position electrical equipment securely inside floor-standing distribution and switchgear cabinets. A profile-based frame gives panel builders flexibility when arranging modular equipment, mounting assemblies and supporting components while maintaining an organised cabinet layout.
The ABB WR28 provides a 2 PW, 12-grid-unit mounting structure for compatible ABB cabinet systems. It can be used for free-form assembly directly on the WR framework and with appropriate ABB EDF installation sets or modules, providing a versatile foundation for professional low-voltage distribution construction.
Typical Applications
- ABB floor-standing distribution cabinets.
- ABB modular and row-mounted switchgear cabinets.
- Low-voltage sub-distribution systems.
- Free-form electrical equipment mounting.
- Compatible EDF installation-set assemblies.
- CombiLine modular distribution equipment installations.
