Why Choose the ABB 1MM00 Media Panel?

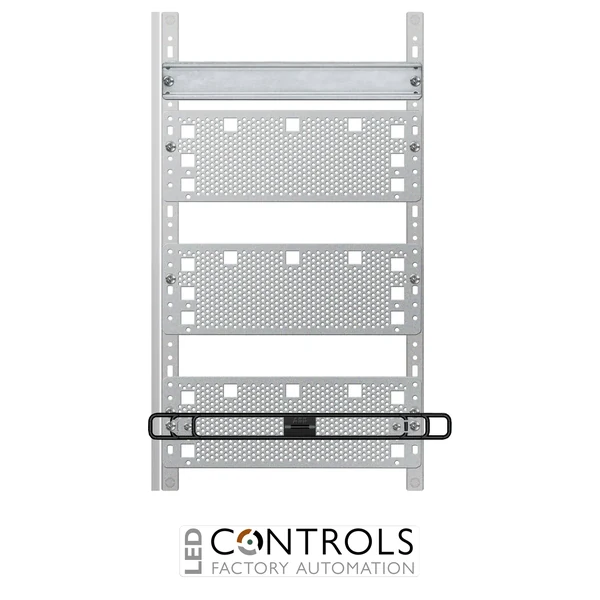

The ABB 1MM00 is a dedicated media panel for compact electrical distribution boards, designed to provide an organised mounting area for communication and multimedia equipment. With a 250 mm width and 450 mm height, it provides a compact solution for integrating data and communications equipment into compatible ABB distribution enclosures.
The 1MM00 is configured as a 1 panel-width (1PW), 3-row media field and incorporates three perforated sheet-steel mounting plates. This modular mounting arrangement supports fast installation of suitable multimedia equipment such as routers, switches and other communications components without requiring a conventional DIN-rail arrangement.
Designed for compatible ABB ComfortLine compact distribution boards, the 1MM00 is supplied without a cover and measures 450 mm high × 250 mm wide. ABB identifies the product under order code 2CPX037485R9999, providing precise identification for specification, replacement and procurement.
Key Advantages
- Purpose-designed media panel for ABB compact distribution boards.
- 250 mm wide × 450 mm high compact format.
- 1PW, 3-row configuration for organised multimedia installations.
- Includes three perforated mounting plates for flexible equipment positioning.
- Suitable for communications equipment such as routers and network switches.
- Designed for rapid, flexible installation within compatible ABB distribution enclosures.
Key Features
- ABB ComfortLine media panel.
- 1 panel width (1PW).
- 3 grid units / rows.
- 450 mm height.
- 250 mm width.
- Three perforated sheet-steel mounting plates.
- Designed for multimedia and communications equipment.
- Supplied without cover.
- Suitable for compatible empty compact distribution boards.
- ABB order code 2CPX037485R9999.
Organised Mounting for Communication and Media Equipment
Media panels provide a dedicated installation area for communications equipment within modern electrical distribution systems. Perforated mounting plates allow devices such as routers, network switches and other multimedia components to be positioned flexibly while keeping equipment organised inside the enclosure.
The ABB 1MM00 combines a compact 250 × 450 mm format with three perforated mounting plates. This makes it a practical solution for integrating communications and multimedia equipment into compatible ABB ComfortLine compact distribution boards.
Typical Applications
- ABB ComfortLine compact distribution boards.
- Residential and commercial media distribution systems.
- Router and network switch installation.
- Structured communications and data equipment.
- Multimedia distribution installations.
- Combined electrical and communications distribution systems.
