Why Choose the ABB 1V00A Distribution Panel?

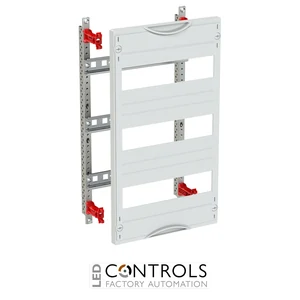

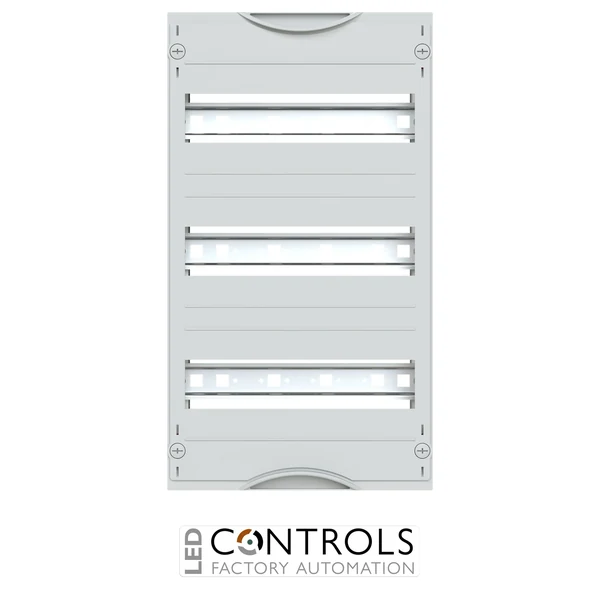

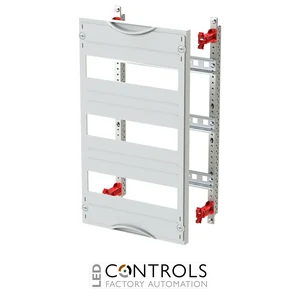

The ABB 1V00A (2CPX037580R9999) is a robust 1-panel-width distribution panel for DIN rail mounting devices designed for use within compatible ABB sub-distribution enclosures. Part of the ABB DESUJ Sub Distribution product group, it provides a structured mounting system for modular electrical devices in commercial, residential and industrial distribution applications.
The 1V00A is mounted on EDF profiles and provides 36 modular space units arranged across three DIN rails, with 12 modular spaces per rail. The panel uses 35 × 15 mm DIN rails with perforations for wire holders and has a 125 mm row spacing, providing an organised platform for installing DIN 43880 modular devices and routing associated wiring.
With dimensions of 450 mm high × 250 mm wide × 120 mm deep, the 1V00A has a field width of 1 PW and a height of three grid units. Plastic covers with cut-outs and 90-degree press-and-turn closures provide convenient access, while the supplied EDF profile rails support straightforward integration into compatible ABB cabinets.
Key Advantages
- Purpose-designed distribution panel for DIN rail mounting devices.
- 36 modular space units provide capacity for a range of modular electrical devices.
- Three DIN rails with 12 modular spaces per rail.
- 125 mm row spacing provides organised installation and wiring space.
- Designed for modular devices complying with DIN 43880.
- Plastic covers with cut-outs and practical 90-degree press-and-turn closures.
- EDF profile rails are included for integration into compatible ABB enclosures.
- Suitable for sub-distribution applications with a minimum cabinet depth of 120 mm.
Key Features
- ABB 1V00A distribution panel.
- 1 PW field width.
- 3 grid units / 450 mm panel height.
- 36 modular space units.
- 3 DIN rails with 12 modular spaces per rail.
- 35 × 15 mm DIN rails with perforations for wire holders.
- 125 mm DIN rail spacing.
- Plastic covers with cut-outs.
- 90-degree press-and-turn cover closures.
- EDF profile mounting system with profile rails included.
Organised DIN Rail Distribution for Electrical Installations
Distribution panels provide a structured mounting platform for modular protection, control and switching equipment within electrical cabinets. The ABB 1V00A combines three horizontal DIN rails with 36 modular spaces, allowing compatible DIN rail devices to be arranged clearly while maintaining practical space for wiring and installation work.
The 1V00A is designed around ABB's EDF profile mounting system and is suitable for modular equipment manufactured to DIN 43880 dimensions. Its included covers, DIN rails and EDF profile rails provide an integrated solution for building professional sub-distribution assemblies within compatible ABB cabinets.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Residential electrical distribution installations.
- Industrial control and distribution cabinets.
- DIN rail protection and switching equipment.
- Modular control and automation devices.
- ABB wall-mounted, floor-standing and switchgear cabinet systems.
