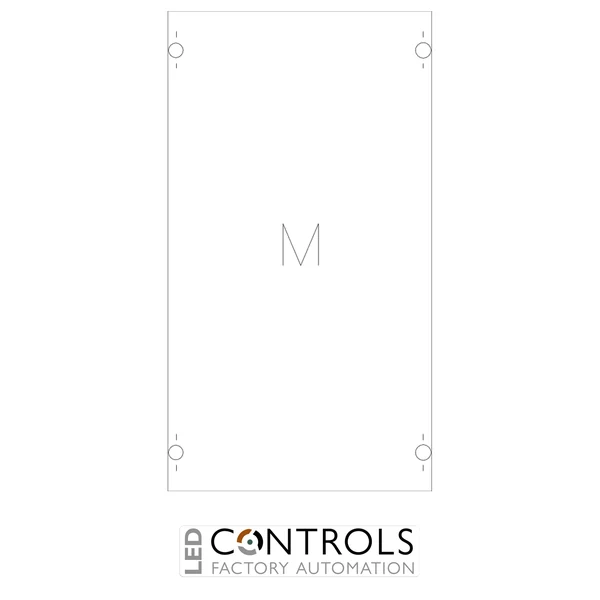

Why Choose the ABB 1M00A Distribution Panel?
The ABB 1M00A is a professional 1PW distribution panel designed for mounting electrical equipment within compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX037582R9999, it combines a steel mounting plate, closed protective cover and EDF profile rails in a compact internal expansion system.
As part of the ABB DESUJ Sub Distribution range, the 1M00A provides a 3GU / 450 mm high installation field with a 1PW / 250 mm field width. The panel provides 36 space units and is designed for installation in compatible cabinets with a minimum depth of 120 mm.
The integrated mounting plate is manufactured from 2 mm sheet steel and can be continuously adjusted in depth using the appropriate deep-mounting arrangement. The closed plastic cover has a light-grey RAL 7035 finish and a practical 90-degree push-turn fastening system for dependable access and protection.
Key Advantages
- Compact 1PW distribution panel for compatible ABB cabinet systems.
- 3GU / 450 mm installation height for modular internal expansion.
- Provides 36 space units for electrical equipment installation.
- Robust 2 mm sheet-steel mounting plate.
- Depth-adjustable mounting plate supports flexible equipment positioning.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 1M00A distribution panel.
- ABB order code 2CPX037582R9999.
- 1PW / 250 mm field width.
- 3GU / 450 mm field height.
- 36 space units.
- Steel mounting plate with 2 mm material thickness.
- Closed plastic cover with 90-degree push-turn fastener.
- RAL 7035 light-grey cover finish.
Flexible Internal Expansion for Distribution Cabinets
Distribution panels such as the ABB 1M00A provide a structured internal platform for mounting electrical equipment within low-voltage cabinets. The integrated mounting plate enables components to be securely positioned while its depth-adjustable design provides flexibility for equipment with different installation requirements.
The 1M00A is supplied with EDF profile rails and a closed protective cover, providing the principal components required for integration into a compatible cabinet. Distribution panels and panel combinations should use the same grid-unit height as the cabinet in which they are installed.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- Switchgear and protective-device mounting.
- Control and automation equipment installation.
- Commercial and industrial distribution systems.
- Professional panel building and cabinet expansion.
