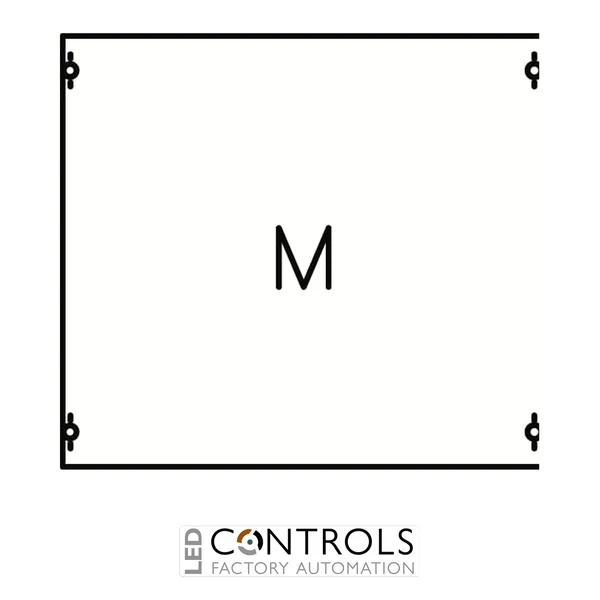

Why Choose the ABB 2M00A Distribution Panel?
The ABB 2M00A is a professional 2PW distribution panel designed for mounting electrical equipment within compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX037583R9999, it combines a robust mounting-plate arrangement with a closed protective cover and EDF profile rails for structured internal cabinet expansion.
As part of the ABB DESUJ Sub Distribution range, the 2M00A provides a 3GU / 450 mm high installation field with a 2PW / 500 mm field width. Its wider two-field format provides 72 space units, making it suitable for installations requiring substantial equipment mounting capacity within a compact vertical area.
The mounting plates are manufactured from 2 mm sheet steel and are continuously depth-adjustable using the appropriate deep-mounting arrangement. The closed plastic cover features a light-grey RAL 7035 finish and a 90-degree push-turn fastener, while the complete panel can be used in compatible cabinets from 120 mm depth.
Key Advantages
- Wide 2PW distribution panel for compatible ABB cabinet systems.
- 3GU / 450 mm installation height for modular internal expansion.
- Provides 72 space units for electrical equipment installation.
- Robust 2 mm sheet-steel mounting plates.
- Continuously depth-adjustable mounting arrangement for flexible equipment positioning.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 2M00A distribution panel.
- ABB order code 2CPX037583R9999.
- 2PW / 500 mm field width.
- 3GU / 450 mm field height.
- 72 space units.
- Mounting plates manufactured from 2 mm sheet steel.
- Closed plastic cover with 90-degree push-turn fastening.
- RAL 7035 light-grey cover finish.
Flexible Internal Expansion for Distribution Cabinets
Distribution panels such as the ABB 2M00A provide a structured internal platform for installing electrical components within low-voltage cabinets. Its two-field, 500 mm-wide format provides a generous equipment area, while the adjustable mounting plates enable the installation depth to be adapted to suit different component requirements.
The 2M00A is supplied with EDF profile rails for integration into compatible cabinet systems. Distribution panels or panel combinations must have the same grid-unit height as the cabinet in which they are installed, while floor-standing and switchgear cabinet arrangements use two panels or field combinations installed one above the other.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- Switchgear and protective-device mounting.
- Control and automation equipment installation.
- Commercial and industrial electrical distribution systems.
- Professional panel building and cabinet expansion.
