Why Choose the ABB 1B00A Distribution Panel?

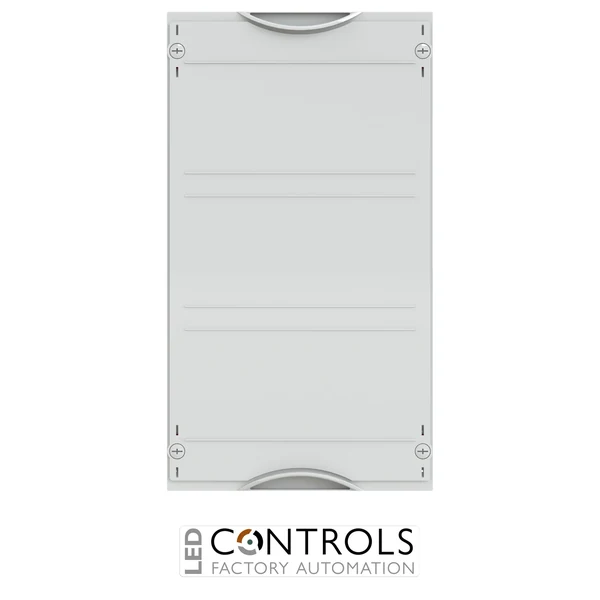

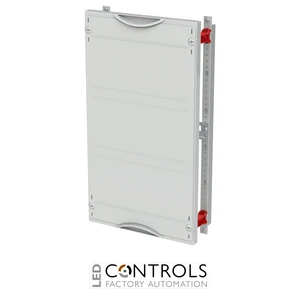

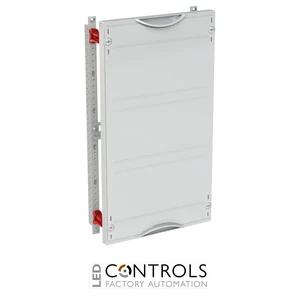

The ABB 1B00A is a 1 PW distribution panel designed for ABB’s modular internal expansion system for low-voltage distribution cabinets. It provides a structured, touch-protected internal mounting solution for professional electrical distribution assemblies and is supplied mounted on ABB EDF profile rails.
Configured with 3 GU and a field width of 1 PW / 250 mm, the 1B00A provides 36 space units within a compact 450 mm-high panel arrangement. Its closed plastic cover uses a practical 90-degree press-and-turn closure, helping create an orderly and protected internal installation.
The 1B00A is suitable for cabinets with a minimum depth of 120 mm. ABB specifies that distribution panels or field combinations must use the same grid-unit arrangement as the cabinet in which they are installed, while the included EDF profile rails support straightforward integration into compatible enclosure systems.
Key Advantages
- Purpose-designed distribution panel for ABB modular enclosure systems.
- 1 PW / 250 mm field width for compact cabinet configurations.
- Provides 36 space units for structured electrical distribution assemblies.
- 3 GU / 450 mm height configuration.
- Closed plastic cover supports touch-protected internal installation.
- EDF profile rails included for integration into compatible cabinets.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 1B00A.
- 1 PW field width.
- 3 GU grid-unit configuration.
- 36 space units.
- 250 mm panel width.
- 450 mm panel height.
- Closed plastic cover.
- 90° press-and-turn closure.
- EDF profile rails included in the scope of delivery.
Reliable Internal Distribution for Electrical Cabinets
Distribution panels provide the internal mounting and protective structure needed to organise electrical equipment within low-voltage cabinets. Matching the panel field width and grid units to the enclosure helps maintain a coordinated modular layout while providing suitable protection around installed components.
The ABB 1B00A combines a 250 mm field width with 3 GU and 36 space units, making it suitable for compact distribution arrangements. Its closed cover and included EDF profile rails provide a coordinated solution for integrating the panel into compatible ABB cabinet systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB modular sub-distribution systems.
- Commercial building electrical installations.
- Industrial distribution assemblies.
- Switchgear and control cabinet construction.
- Panel building and system integration.
- Standalone and row-switching cabinet configurations.
