Why Choose the ABB 2B00A Distribution Panel?

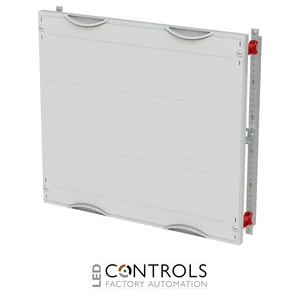

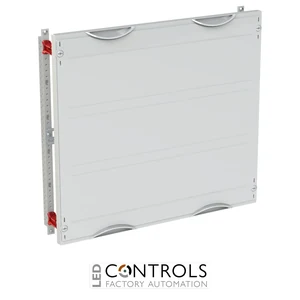

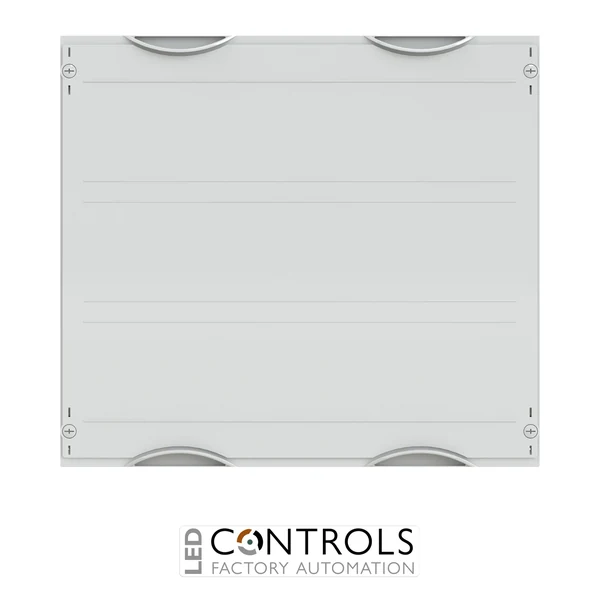

The ABB 2B00A is a 2 PW distribution panel designed for ABB’s modular internal expansion system for low-voltage electrical distribution cabinets. Mounted on EDF profile rails, it provides a structured and touch-protected internal arrangement for professional sub-distribution and switchgear assemblies.
Configured with 3 GU and a field width of 2 PW / 500 mm, the 2B00A provides 72 space units within a compact 450 mm-high panel. Its closed plastic covers use practical 90-degree press-and-turn closures and are finished in RAL 7035 for coordinated integration with compatible ABB cabinets.
The 2B00A is suitable for cabinets with a minimum depth of 120 mm. ABB specifies that distribution panels or field combinations must have the same grid-unit arrangement as the cabinets in which they are installed, while the required EDF profile rails are included in the scope of delivery.
Key Advantages
- Purpose-designed distribution panel for ABB modular enclosure systems.
- 2 PW / 500 mm field width for wider internal distribution arrangements.
- Provides 72 space units for structured electrical assemblies.
- 3 GU / 450 mm height configuration.
- Closed plastic covers provide effective touch protection for the internal installation.
- EDF profile rails included for integration into compatible electrical cabinets.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 2B00A.
- 2 PW field width.
- 3 GU grid-unit configuration.
- 72 space units.
- 500 mm panel width.
- 450 mm panel height.
- Closed plastic cover design.
- 90° press-and-turn closure.
- EDF profile rails included in the scope of delivery.
Reliable Internal Distribution for Electrical Cabinets
Distribution panels provide the internal mounting and protective structure required to organise electrical equipment within low-voltage cabinets. Matching the field width and grid-unit arrangement to the enclosure helps maintain a coordinated modular layout while providing touch protection around the installed equipment.
The ABB 2B00A combines a 500 mm field width with 3 GU and 72 space units, providing twice the field width and space-unit capacity of the corresponding single-width 1B00A panel. Its closed covers and included EDF profile rails provide a coordinated solution for professional ABB distribution cabinet assemblies.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB modular sub-distribution systems.
- Commercial building electrical installations.
- Industrial power distribution assemblies.
- Switchgear and control cabinet construction.
- Panel building and electrical system integration.
- Standalone and row-switching cabinet configurations.
