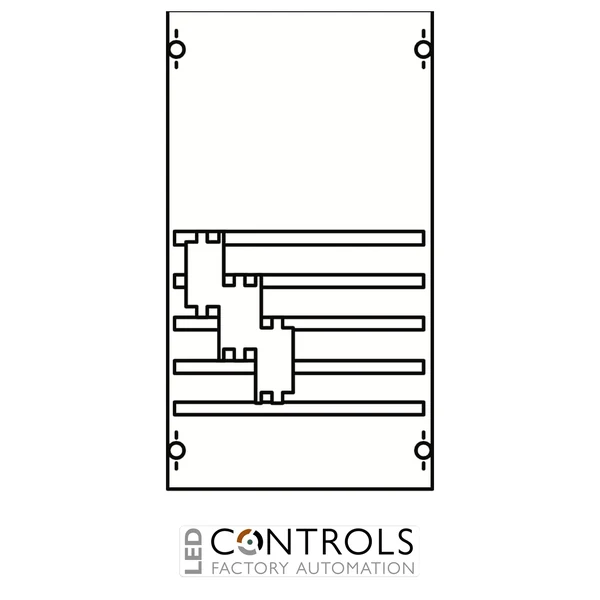

Why Choose the ABB 1V003A Distribution Board 1PW?
The ABB 1V003A is a professional 1-panel-width (1PW) distribution board panel designed for integration into compatible ABB electrical distribution cabinets. Supplied under ABB order code 2CPX037588R9999, this empty distribution panel provides a structured mounting solution for professional sub-distribution and switchboard installations.
The 1V003A is designed for compatible ABB U, A, TG and SZ cabinet systems and is supplied without installed devices or wiring. Its modular construction gives panel builders and electrical installers flexibility when configuring distribution assemblies for specific applications, while the plastic cover provides protected access to the installation area.
With dimensions of approximately 450 × 250 × 160 mm (H × W × D), the 1V003A has a 1PW field width, 3 GU grid-unit configuration and 36 space units. The cover incorporates a practical 90° press-and-turn closure for convenient access and is finished in RAL 7035 light grey to coordinate with compatible ABB distribution cabinet systems.
Key Advantages
- Genuine ABB 1PW distribution board panel for professional sub-distribution systems.
- Empty, unequipped design provides flexibility when configuring electrical assemblies.
- 36 space units provide structured capacity within the distribution field.
- Compact 450 × 250 × 160 mm format for compatible cabinet installations.
- Plastic cover with a convenient 90° press-and-turn closure.
- Designed for compatible ABB U, A, TG and SZ cabinet systems.
- RAL 7035 light grey finish coordinates with ABB distribution equipment.
Key Features
- ABB 1V003A distribution board panel.
- ABB order code 2CPX037588R9999.
- 1-panel-width (1PW) configuration.
- 3 GU grid-unit configuration.
- 36 space units.
- Empty board supplied without installed devices.
- Supplied without internal wiring.
- Plastic cover with opening cut-out.
- 90° press-and-turn closure for convenient access.
- Supplied without N/PE terminals.
- Suitable for compatible ABB U, A, TG and SZ cabinets.
- RAL 7035 light grey finish.
Flexible Distribution Panel for Professional Installations
Distribution board panels such as the ABB 1V003A provide a structured installation area within larger electrical distribution cabinets. The empty and unwired format allows panel builders to configure the assembly according to the requirements of the project while maintaining compatibility with ABB's coordinated cabinet and distribution systems.
The 1V003A combines a compact 1PW format with 36 space units and a removable-access cover secured by a 90° press-and-turn mechanism. This makes it suitable for professional electrical installations where modular construction, convenient access and a consistent cabinet layout are required.
Typical Applications
- ABB electrical sub-distribution systems.
- Compatible ABB U, A, TG and SZ distribution cabinets.
- Commercial electrical distribution installations.
- Industrial switchboards and control cabinets.
- Building electrical distribution systems.
- Custom panel-building projects.
- Modular electrical distribution assemblies.
