Why Choose the ABB 1V002A Distribution Panel?
The ABB 1V002A is a 1 PW distribution panel from ABB’s internal distribution system, designed for busbar and terminal applications in compatible low-voltage distribution cabinets. Supplied mounted on EDF profile rails, it provides a structured, manufacturer-matched solution for building professional power distribution assemblies.

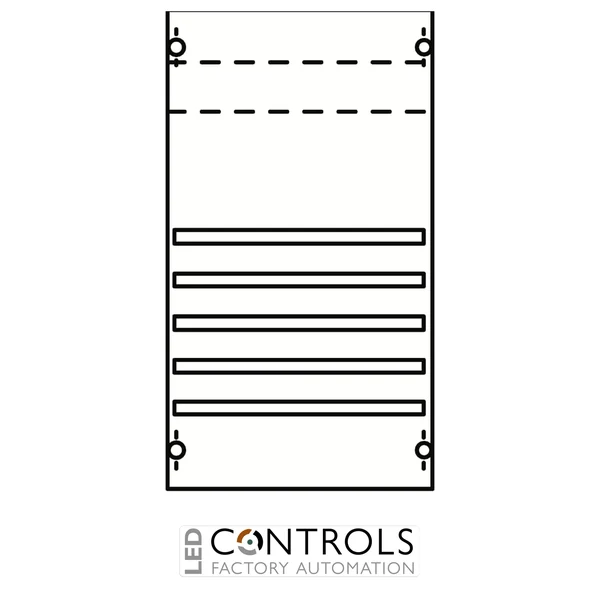

The 1V002A has a 1 PW field width of 250 mm and a height of 3 GU / 450 mm, providing 36 space units. Its integrated horizontal busbar system uses five copper busbars with a 40 mm busbar centre spacing and ZB5 busbar holders.
Designed for installations from a cabinet depth of 120 mm, the 1V002A incorporates a five-pole busbar system with a rated current of up to 360 A. Closed plastic covers with a 90° push-turn closure provide a neat protective front, while the included EDF profile rails simplify integration into compatible ABB distribution cabinets.
Key Advantages
- Complete 1 PW distribution panel for compatible ABB cabinet systems.
- Integrated five-pole horizontal copper busbar system.
- Rated current up to 360 A for suitable configured installations.
- 40 mm busbar centre spacing with ZB5 busbar holders.
- Compact 250 mm width × 450 mm height configuration.
- Supplied with EDF profile rails for cabinet integration.
Key Features
- ABB internal distribution panel system.
- Model 1V002A.
- 1 PW field width.
- 3 GU / 450 mm panel height.
- 36 space units.
- Five-pole horizontal busbar system.
- Five copper busbars.
- 40 mm busbar centre spacing.
- ZB5 busbar holders.
- Maximum rated current of 360 A.
- Closed plastic covers in RAL 7035.
- 90° push-turn cover closure.
- Suitable from a cabinet depth of 120 mm.
- EDF profile rails included.
- ABB order code 2CPX037590R9999.
Structured Busbar Distribution for Low-Voltage Cabinets
Distribution panels with integrated busbars provide an organised foundation for distributing electrical power within low-voltage switchgear and sub-distribution assemblies. The horizontal five-pole busbar arrangement of the ABB 1V002A provides a defined connection system for compatible terminals and distribution equipment while maintaining an orderly internal cabinet layout.
With its 1 PW width, 3 GU height and 360 A maximum rated current, the 1V002A provides a compact busbar distribution solution for compatible ABB cabinets. Distribution panels and field combinations should be selected with the same grid-unit configuration as the cabinet in which they are installed.
Typical Applications
- Low-voltage sub-distribution cabinets.
- ABB internal distribution systems.
- Busbar and terminal distribution assemblies.
- Commercial building electrical distribution.
- Industrial low-voltage distribution panels.
- Compatible ABB floor-standing and row switchgear cabinet installations.
