Why Choose the ABB 1V0A Distribution Panel?
The ABB 1V0A is a 1 PW distribution panel for DIN rail-mounted modular devices, designed for structured internal installation in compatible ABB low-voltage distribution cabinets. Mounted on ABB EDF profiles, the panel provides a manufacturer-matched framework for organising protective, switching and other DIN rail equipment.

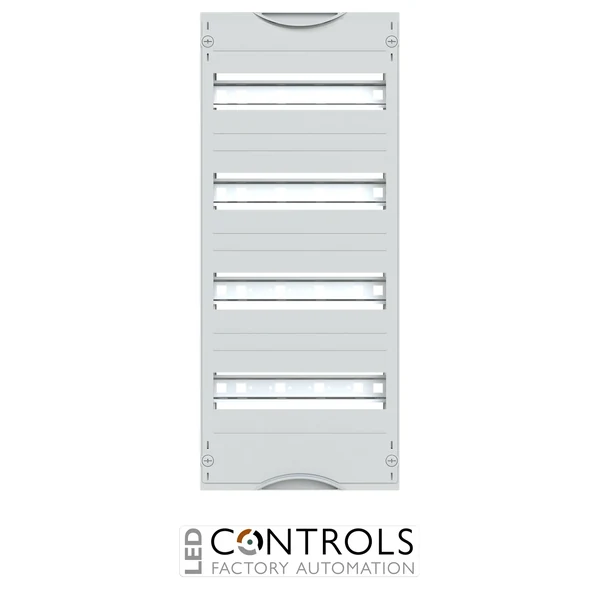

The 1V0A provides a 1 PW field width of 250 mm and a 4 GU height of 600 mm, delivering 48 modular spaces across four DIN rails. Each rail accommodates 12 modular spaces, while the 125 mm row spacing provides an orderly arrangement for DIN 43880 modular equipment.

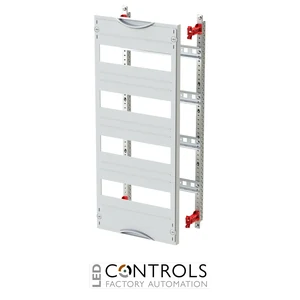

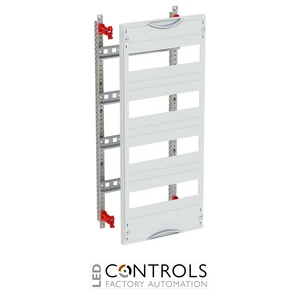

Designed for compatible cabinets from 120 mm depth, the 1V0A is supplied with 35 × 15 mm DIN rails and EDF profile rails. Plastic covers with equipment cut-outs, a 90° push-turn closure and RAL 7035 finish complete the assembly, while ABB identifies the panel under order code 2CPX037591R9999.
Key Advantages
- Dedicated 1 PW distribution panel for compatible ABB enclosure systems.
- Provides 48 modular spaces for DIN rail-mounted devices.
- Four DIN rails with 12 modular spaces per rail.
- 125 mm row spacing supports an organised modular equipment layout.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for straightforward cabinet integration.
Key Features
- ABB internal distribution panel system.
- Model 1V0A.
- 1 PW field width.
- 4 GU / 600 mm height.
- 48 modular spaces.
- Four DIN rails.
- 12 modular spaces per DIN rail.
- 125 mm row spacing.
- 35 × 15 mm DIN rails with perforations for wire holders.
- Designed for modular devices according to DIN 43880.
- Plastic covers with equipment cut-outs.
- 90° push-turn cover closure.
- RAL 7035 cover finish.
- Supplied without N/PE quick-connect terminals.
- ABB order code 2CPX037591R9999.
Structured DIN Rail Installation for Distribution Cabinets
Distribution panels for modular devices provide an organised framework for installing circuit protection, switching, control and other DIN rail equipment inside low-voltage distribution cabinets. The ABB 1V0A uses four horizontal DIN rails with 125 mm spacing, providing installers with 48 clearly arranged modular spaces within a compact 1 PW field.
The included EDF profiles, perforated 35 × 15 mm DIN rails and equipment covers create a coordinated internal installation system for compatible ABB enclosures. Distribution panels or panel combinations should be selected with grid units corresponding to the cabinet configuration in which they are installed.
Typical Applications
- ABB low-voltage sub-distribution cabinets.
- DIN rail-mounted protective device installations.
- Commercial building electrical distribution.
- Industrial low-voltage distribution systems.
- Modular switching and control equipment assemblies.
- Compatible ABB floor-standing and switchgear cabinet installations.
