Why Choose the ABB 2V0A Distribution Panel?

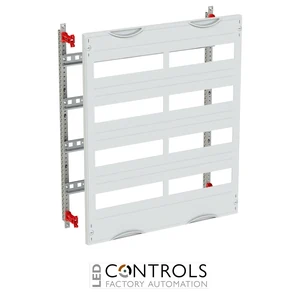

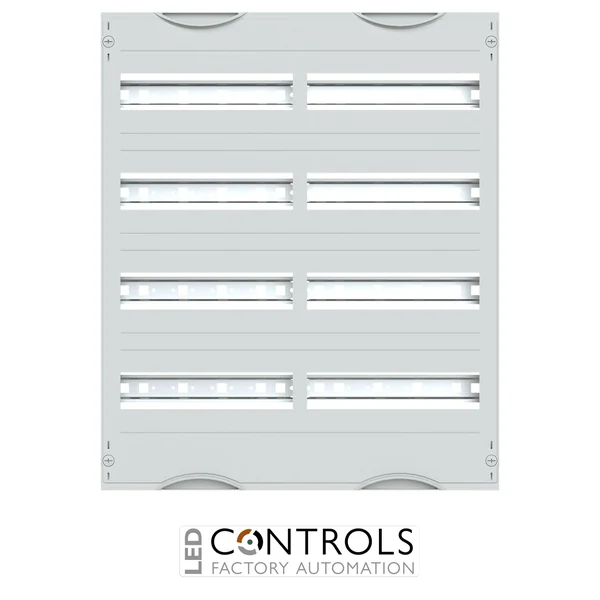

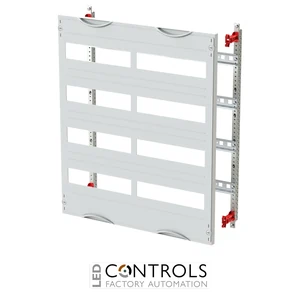

The ABB 2V0A is a 2 panel-width (2PW) distribution panel designed for DIN rail-mounted devices within ABB electrical sub-distribution systems. The panel provides a structured internal installation system for modular devices manufactured in accordance with DIN 43880.
With a nominal size of 600 mm high × 500 mm wide, the 2V0A provides 96 modular units (PLE) across four installation rows with a 125 mm row spacing. The assembly uses 35 × 15 mm DIN rails and includes the EDF profile rails required for integration into compatible ABB cabinets.
The 2V0A is suitable for installation from a cabinet depth of 120 mm and is supplied without N/PE quick plug-in terminals. Its plastic covers feature cut-outs for modular devices and use 90° push-turn fasteners, providing an organised and serviceable internal distribution arrangement.
Key Advantages
- Purpose-designed 2PW distribution panel for DIN rail-mounted devices.
- Provides 96 modular units (PLE) for electrical distribution equipment.
- Four installation rows with 125 mm row spacing.
- Equipped with 35 × 15 mm DIN rails for DIN 43880 devices.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for integration into ABB distribution systems.
Key Features
- ABB distribution panel / internal expansion system.
- 2 panel widths (2PW).
- 4 grid units (GU).
- 600 mm height.
- 500 mm width.
- 96 modular units (PLE).
- 125 mm row spacing.
- 35 × 15 mm horizontal DIN rails.
- Designed for modular devices according to DIN 43880.
- Plastic covers with device cut-outs and 90° push-turn fasteners.
- Supplied without N/PE quick plug-in terminals.
- ABB order code 2CPX037592R9999.
Reliable Modular Distribution for Electrical Installations
Distribution panels provide the internal mounting structure required for modular protective, switching and control devices within electrical cabinets. DIN rail-based construction enables equipment to be arranged systematically while supporting straightforward installation, inspection and maintenance.
The ABB 2V0A provides a 500 mm wide, 4GU installation field with capacity for 96 modular units. Its included EDF profile rails, DIN rail arrangement and purpose-designed covers make it a coordinated solution for compatible ABB sub-distribution cabinets.
Typical Applications
- Electrical sub-distribution cabinets.
- DIN rail-mounted protective and switching devices.
- Commercial building distribution systems.
- Industrial electrical distribution panels.
- Modular control and protection assemblies.
- ABB cabinet and panel-building installations.
