Why Choose the ABB 1V0KA Distribution Panel?
The ABB 1V0KA is a 1 panel-width (1PW) distribution panel designed for DIN rail-mounted devices and terminal blocks within compatible ABB electrical sub-distribution systems. Mounted on EDF profiles, it provides a structured internal installation system for modular equipment manufactured in accordance with DIN 43880.

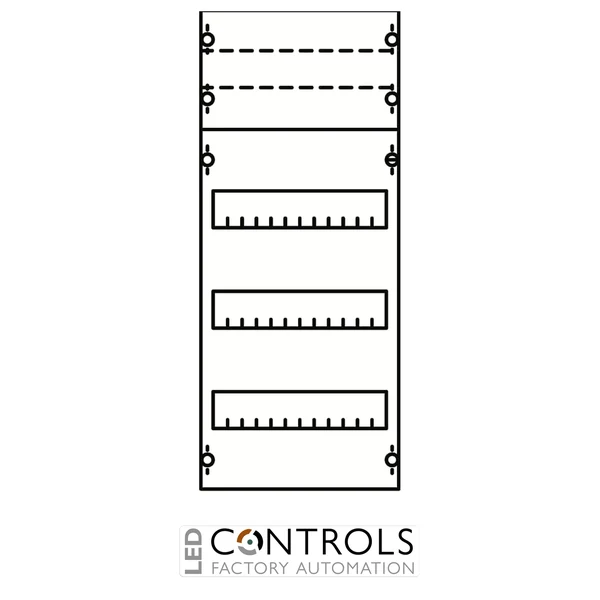

With a nominal size of 600 mm high × 250 mm wide, the 1V0KA provides 48 modular space units (PLE). It incorporates three 35 × 15 mm DIN rails, with 12 modular spaces per DIN rail and a 125 mm row spacing, providing an organised arrangement for protective, switching and terminal equipment.
The 1V0KA is suitable for compatible cabinets from 120 mm depth and includes plastic covers with equipment cut-outs, 90° push-turn fasteners and a RAL 7035 finish. The required EDF profile rails are included, while N/PE quick plug-in terminals are not supplied.
Key Advantages
- Purpose-designed 1PW distribution panel for DIN rail-mounted devices and terminals.
- Provides 48 modular space units (PLE) for electrical distribution equipment.
- Three DIN rails with 12 modular spaces per rail.
- 125 mm row spacing for an organised internal installation.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for integration into ABB distribution systems.
Key Features
- ABB internal expansion distribution panel.
- 1 panel width (1PW).
- 4 grid units (GU).
- 600 mm height.
- 250 mm width.
- 48 modular space units (PLE).
- Three 35 × 15 mm DIN rails.
- 12 modular spaces per DIN rail.
- 125 mm row spacing.
- Designed for modular equipment according to DIN 43880.
- Plastic covers with cut-outs and 90° push-turn fasteners.
- RAL 7035 cover finish.
- Supplied without N/PE quick plug-in terminals.
Reliable Modular Distribution for Electrical Installations
Distribution panels provide the internal mounting structure required for modular protective, switching and terminal devices within electrical cabinets. DIN rail-based construction allows equipment to be arranged systematically while supporting straightforward installation, wiring, inspection and maintenance.
The ABB 1V0KA combines a compact 250 mm field width with capacity for 48 modular spaces. Its three DIN rails, included EDF profiles and purpose-designed covers make it a coordinated solution for compatible ABB sub-distribution cabinets.
Typical Applications
- Electrical sub-distribution cabinets.
- DIN rail-mounted protective and switching devices.
- DIN rail terminal block installations.
- Commercial building distribution systems.
- Industrial electrical distribution panels.
- ABB cabinet and panel-building installations.
