Why Choose the ABB 2V0KA Distribution Panel?

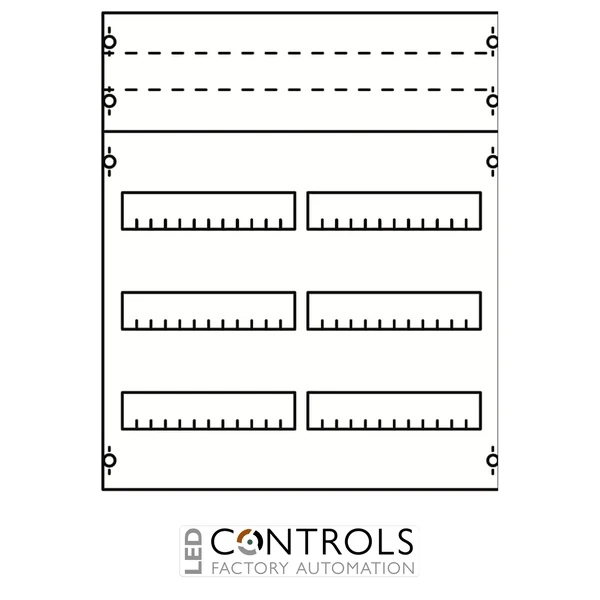

The ABB 2V0KA is a professional 2PW distribution panel designed for installing DIN rail-mounted devices and terminal blocks within compatible ABB modular distribution cabinets. Supplied under ABB order code 2CPX037594R9999, it forms part of ABB's internal expansion system for structured low-voltage distribution assemblies.
As part of the ABB DESUJ Sub Distribution range, the 2V0KA is mounted on EDF profile rails and provides a 4GU / 600 mm installation height with a 2PW / 500 mm field width. The panel provides 96 space units, making it suitable for substantial modular-device installations within a compact cabinet field.
The 2V0KA uses 35 × 15 mm DIN rails with a 125 mm row spacing for rail-mounted devices conforming to DIN 43880. Its light-grey RAL 7035 plastic covers incorporate equipment cut-outs and 90-degree push-turn fasteners, while the panel is suitable for compatible cabinets from 120 mm depth.
Key Advantages
- Professional 2PW distribution panel for DIN rail-mounted devices and terminal blocks.
- 4GU / 600 mm installation height for modular cabinet configurations.
- Provides 96 space units for electrical equipment.
- 500 mm field width provides generous device-mounting capacity.
- 125 mm row spacing for organised modular equipment installation.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 2V0KA distribution panel.
- ABB order code 2CPX037594R9999.
- 2PW / 500 mm field width.
- 4GU / 600 mm installation height.
- 96 space units.
- 35 × 15 mm DIN rails for terminal blocks and modular devices.
- 125 mm row spacing.
- Plastic covers with cut-outs and RAL 7035 light-grey finish.
Structured DIN Rail Installation for Distribution Cabinets
Distribution panels such as the ABB 2V0KA provide an organised internal system for mounting modular electrical devices and terminal blocks. The 35 × 15 mm DIN rails enable compatible equipment to be securely installed while the 125 mm row spacing supports clear wiring routes and accessible device arrangements.
The 2V0KA is supplied with EDF profile rails and is designed for integration into compatible modular cabinets. Distribution panels or field combinations must have the same grid-unit configuration as the cabinet in which they are installed, helping ensure a correctly coordinated internal expansion system.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- DIN rail-mounted protective devices.
- Terminal block installations.
- Commercial and industrial distribution systems.
- Professional panel building and modular cabinet expansion.
