Why Choose the ABB 1M0A Distribution Panel?

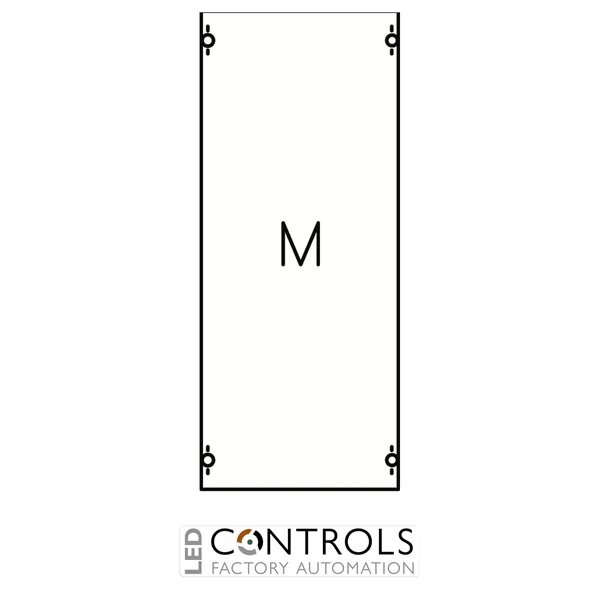

The ABB 1M0A is a professional 1PW distribution panel designed for mounting electrical equipment within compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX037595R9999, it combines a robust mounting plate, closed protective cover and EDF profile rails to provide a structured internal equipment-mounting system.
As part of the ABB DESUJ Sub Distribution range, the 1M0A provides a 4GU / 600 mm high installation field with a 1PW / 250 mm field width. The panel provides 48 space units, making it suitable for professional low-voltage distribution assemblies requiring a compact single-field mounting area.
The mounting plate is manufactured from 2 mm sheet steel and can be continuously adjusted in depth using the appropriate mounting arrangement. The panel provides a usable mounting depth of 143 mm, while its closed plastic cover features a light-grey RAL 7035 finish and a practical 90-degree push-turn fastening system.
Key Advantages
- Compact 1PW distribution panel for compatible ABB cabinet systems.
- 4GU / 600 mm installation height for modular internal expansion.
- Provides 48 space units for electrical equipment installation.
- Robust 2 mm sheet-steel mounting plate.
- Continuously depth-adjustable mounting arrangement for flexible equipment positioning.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 1M0A distribution panel.
- ABB order code 2CPX037595R9999.
- 1PW / 250 mm field width.
- 4GU / 600 mm installation height.
- 48 space units.
- Mounting plate manufactured from 2 mm sheet steel.
- 143 mm usable mounting depth.
- Closed plastic cover with RAL 7035 light-grey finish.
Flexible Internal Expansion for Distribution Cabinets
Distribution panels such as the ABB 1M0A provide a structured internal platform for securely installing electrical components within low-voltage cabinets. The steel mounting plate provides a robust equipment-mounting surface, while its continuously adjustable depth helps accommodate components with different installation requirements.
The 1M0A is mounted on EDF profile rails, which are included with the panel, and is suitable for compatible cabinets from 120 mm depth. Distribution panels or panel combinations should have the same grid-unit height as the cabinet in which they are installed to maintain a correctly coordinated internal expansion system.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- Switchgear and protective-device mounting.
- Control and automation equipment installation.
- Commercial and industrial electrical distribution systems.
- Professional panel building and cabinet expansion.
