Why Choose the ABB 2M0A Distribution Panel?

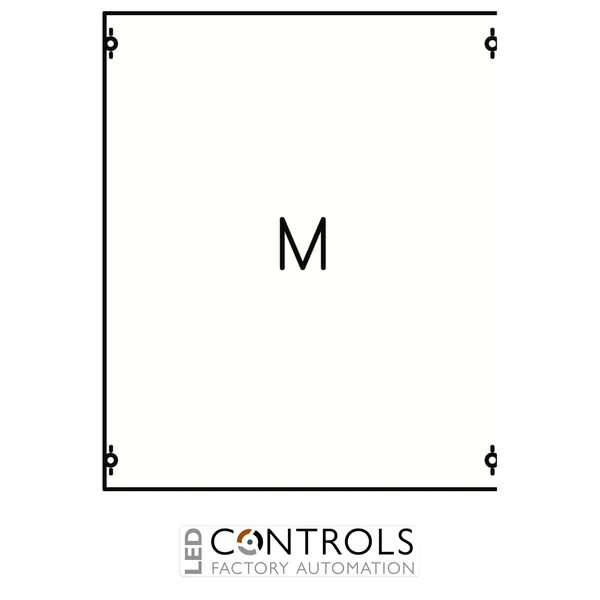

The ABB 2M0A (2CPX037596R9999) is a robust 2-panel-width distribution panel with mounting plate designed for internal configuration of compatible ABB sub-distribution enclosures. Part of the ABB DESUJ Sub Distribution product group, it provides a flexible mounting platform for electrical equipment that cannot be conveniently installed on conventional DIN rails.
The 2M0A is mounted on EDF profiles and features a 2 mm sheet-steel mounting plate that can be continuously adjusted in depth using suitable depth angle pieces. This arrangement provides installers and panel builders with flexibility when positioning switching, control, protection and other electrical equipment within the enclosure.
With a panel size of 600 mm high × 500 mm wide × 120 mm deep, a field width of 2 PW and capacity of 96 space units, the 2M0A provides a substantial installation area. Closed plastic covers with 90-degree press-and-turn closures protect the installation area, while the supplied EDF profile rails support straightforward integration into compatible ABB cabinet systems.
Key Advantages
- Purpose-designed 2 PW distribution panel with mounting plate.
- Generous 600 × 500 mm installation area for electrical equipment.
- 96 space units provide substantial capacity for panel configurations.
- Robust 2 mm sheet-steel mounting plate.
- Mounting plate can be continuously adjusted in depth using suitable depth angle pieces.
- Closed plastic cover helps protect installed equipment.
- Practical 90-degree press-and-turn closures provide convenient cover access.
- EDF profile rails are included for integration into compatible ABB enclosures.
Key Features
- ABB 2M0A distribution panel.
- 2 PW field width.
- 4 grid units / 600 mm panel height.
- 96 space units.
- 2 mm sheet-steel mounting plate.
- Continuously depth-adjustable mounting plate.
- Usable mounting depth of approximately 143 mm with the applicable mounting arrangement.
- Closed plastic cover finished in RAL 7035.
- 90-degree press-and-turn cover closures.
- EDF profile mounting system with profile rails included.
Flexible Mounting for Electrical Distribution Equipment
Mounting-plate distribution panels provide a versatile alternative to DIN rail fields where larger or non-modular electrical components need to be installed. The ABB 2M0A provides a substantial sheet-steel mounting surface that allows compatible switching, control and distribution equipment to be positioned according to the requirements of the electrical assembly.
The 2M0A is designed around ABB's EDF profile system and combines a depth-adjustable mounting plate with a closed protective cover. Distribution panels and field combinations are intended to use the same grid-unit height as the cabinet in which they are installed, supporting an organised and consistent internal enclosure layout.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Industrial electrical cabinets.
- Switching and control equipment installations.
- Protection and power distribution equipment.
- Non-modular electrical component mounting.
- ABB EDF profile-based enclosure systems.
