Why Choose the ABB 1B0A Distribution Panel?

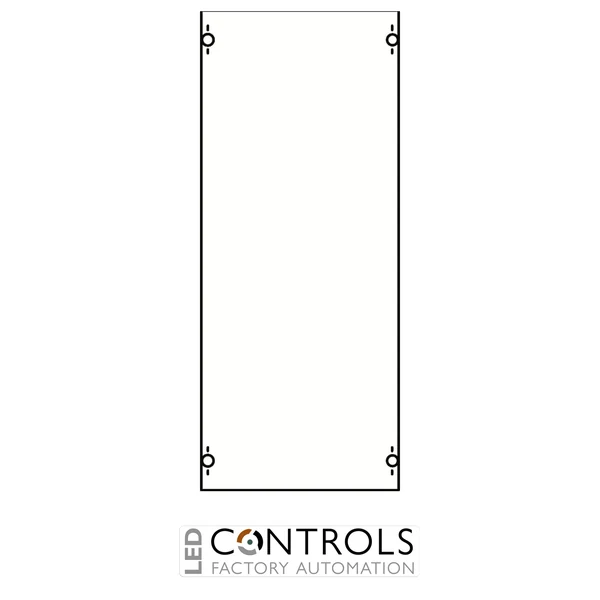

The ABB 1B0A (2CPX037601R9999) is a robust 1-panel-width distribution panel with closed cover designed for internal configuration of compatible ABB modular cabinets and sub-distribution enclosures. Part of the ABB DESUJ Sub Distribution product group, it provides a protected installation field for electrical distribution equipment within professional low-voltage distribution systems.
The 1B0A is mounted on EDF profiles and is designed as a touch-protected distribution field. Its closed plastic cover provides a clean protective barrier over installed equipment, while practical 90-degree press-and-turn closures allow convenient access during installation and maintenance. The EDF profile rails required for installation are included with the panel.
With a field width of 1 PW, a height of 4 grid units / 600 mm and 48 space units, the 1B0A provides a compact but versatile internal distribution area. The panel is suitable for cabinets from 120 mm depth and is designed for integration into ABB modular cabinet systems where a closed, touch-protected distribution field is required.
Key Advantages
- Purpose-designed 1 PW distribution panel for modular cabinets.
- 48 space units provide useful capacity within a compact field width.
- 4 grid units / 600 mm height for integration into compatible cabinet configurations.
- Closed plastic cover provides effective touch protection for the installation area.
- Practical 90-degree press-and-turn closures provide convenient access.
- Mounted using the proven ABB EDF profile system.
- EDF profile rails are included for straightforward installation.
- Suitable for compatible cabinets from 120 mm depth.
Key Features
- ABB 1B0A distribution panel.
- 1 PW field width.
- 4 grid units.
- 600 mm panel height.
- 250 mm field width.
- 48 space units.
- Closed plastic protective cover.
- RAL 7035 cover finish.
- 90-degree press-and-turn cover closures.
- 40 mm grid unit mounting system.
- EDF profile mounting with profile rails included.
Protected Internal Distribution for Modular Cabinets
Distribution panels provide a structured internal installation area for electrical equipment within modular cabinets and sub-distribution systems. The ABB 1B0A combines a compact single-field format with a closed protective cover, helping provide touch protection while maintaining convenient access to the equipment installed behind the panel.
The 1B0A uses ABB's EDF profile mounting system and is designed to form part of coordinated cabinet configurations. Distribution panels and field combinations should use the same grid-unit height as the cabinet in which they are installed, supporting an organised and consistent internal enclosure layout.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Residential electrical distribution installations.
- Industrial electrical cabinets.
- Touch-protected electrical equipment installations.
- Modular low-voltage distribution assemblies.
- ABB EDF profile-based cabinet systems.
