Why Choose the ABB 1V02A Distribution Panel?

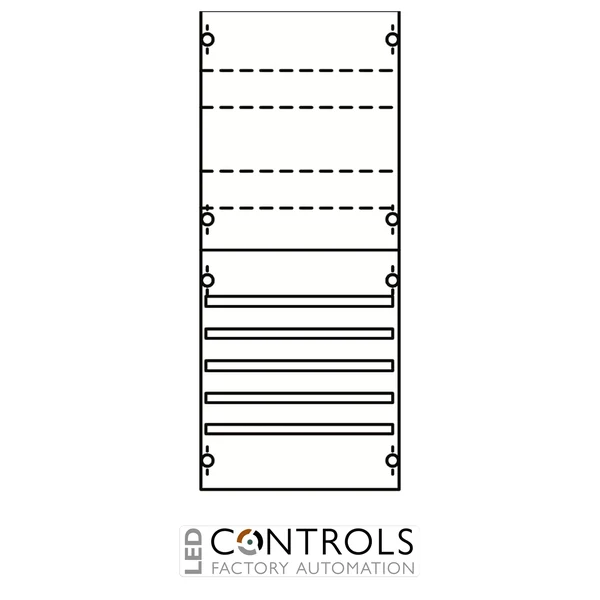

The ABB 1V02A is a 1 PW distribution panel designed for busbar and terminal-block installations within compatible ABB low-voltage distribution cabinets. Mounted on EDF profile rails, it combines a structured internal mounting arrangement with an integrated horizontal busbar system for professional power-distribution assemblies.
Configured with 4 GU and a field width of 1 PW / 250 mm, the 1V02A provides 48 space units within a 600 mm-high panel. The integrated busbar system is 5-pole, uses five copper rails with a 40 mm centre spacing, and is supported by an ABB ZB5 busbar holder.
The 1V02A supports a maximum rated current of 360 A and maximum rated operating voltage of 400 V. Closed RAL 7035 plastic covers with 90-degree press-and-turn closures provide a coordinated front protection system, while the included EDF profile rails simplify installation into compatible cabinets from 120 mm depth.
Key Advantages
- Purpose-designed 1 PW distribution panel for busbars and terminal blocks.
- Integrated 5-pole horizontal copper busbar system.
- Maximum rated current of 360 A.
- 4 GU / 600 mm panel height with 48 space units.
- Closed plastic covers provide touch protection for the internal assembly.
- EDF profile rails included for integration into compatible ABB cabinets.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 1V02A.
- 1 PW / 250 mm field width.
- 4 GU / 600 mm height.
- 48 space units.
- 5-pole busbar system.
- Horizontal busbar orientation.
- Five copper busbars.
- 40 mm busbar centre spacing.
- ABB ZB5 busbar holder.
- Closed RAL 7035 plastic covers.
- EDF profile rails included.
Integrated Busbar Distribution for Professional Cabinets
Busbar distribution panels provide an organised method of distributing electrical power through a cabinet while supporting efficient connection to downstream circuits and terminal equipment. A coordinated busbar arrangement helps panel builders create compact, repeatable assemblies while maintaining the required mechanical spacing and protective covering.
The ABB 1V02A combines five horizontally arranged copper rails with a 40 mm centre spacing and ZB5 busbar holder. With a maximum rated current of 360 A, 48 space units and included EDF profile rails, it provides a complete internal expansion solution for compatible ABB distribution cabinets.
Typical Applications
- Low-voltage electrical distribution cabinets.
- Busbar and terminal-block assemblies.
- ABB modular sub-distribution systems.
- Commercial building power distribution.
- Industrial electrical distribution systems.
- Switchgear and control cabinet construction.
- Panel building and electrical system integration.
