Why Choose the ABB 2V02A Distribution Panel 2PW?

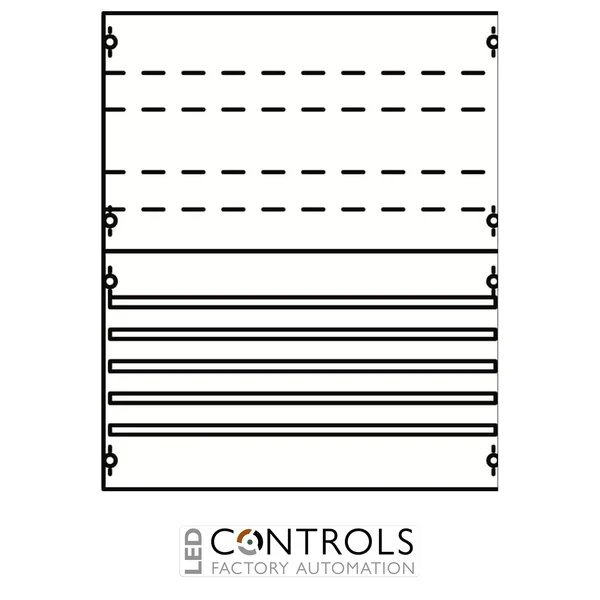

The ABB 2V02A is a professional 2-panel-width (2PW) distribution panel designed for internal expansion of compatible ABB electrical distribution cabinets. Supplied under ABB order code 2CPX037607R9999, it combines a structured modular installation area with an integrated five-pole busbar system for professional sub-distribution assemblies.
The 2V02A has a 4 GU / 600 mm height and a 2PW / 500 mm width, providing 96 PLE for equipment installation. Its covers are arranged as two 300 mm sections, while the supplied EDF profile rails support straightforward integration into the appropriate ABB cabinet system.
For power distribution, the panel incorporates five-pole 12 × 5 mm busbars with a 40 mm busbar centre distance and ABB ZX2BP2 busbar brackets. The distribution panel system supports a rated current of up to 360 A when configured with the specified maximum busbar arrangement, making it suitable for substantial commercial and industrial sub-distribution applications.
Key Advantages
- Genuine ABB 2PW distribution panel for professional sub-distribution systems.
- 96 PLE installation capacity provides a spacious modular equipment area.
- Integrated five-pole busbar system for structured power distribution.
- 40 mm busbar centre distance for coordinated ABB system integration.
- Supplied with 12 × 5 mm busbars and ZX2BP2 busbar brackets.
- Distribution panel system supports rated currents of up to 360 A.
- EDF profile rails included for integration into compatible cabinet assemblies.
- Suitable for compatible cabinets with a depth from 120 mm.
Key Features
- ABB 2V02A distribution panel.
- ABB order code 2CPX037607R9999.
- 2-panel-width (2PW) configuration.
- 4 GU overall height.
- 600 mm panel height.
- 500 mm panel width.
- 96 PLE installation capacity.
- Five-pole 12 × 5 mm busbars.
- 40 mm busbar centre spacing.
- ABB ZX2BP2 busbar brackets.
- EDF profile rails included in the scope of supply.
- Two-part cover arrangement with 300 mm top and bottom sections.
Structured Power Distribution for ABB Cabinet Systems
Distribution panels such as the ABB 2V02A provide a coordinated internal expansion system for arranging modular electrical equipment and distributing power within larger switchboard and sub-distribution assemblies. Its five-pole busbar arrangement creates a structured electrical backbone while the EDF profile rails provide the mechanical framework for compatible installation components.
The 2V02A is designed to match the grid-unit configuration of the cabinet in which it is installed. For standalone and row switching cabinets, ABB specifies that two fields or field combinations are installed one above the other, enabling the panel to form part of a coordinated and scalable professional distribution system.
Typical Applications
- ABB electrical sub-distribution systems.
- Commercial power distribution assemblies.
- Industrial distribution and switchgear cabinets.
- Building-services electrical distribution.
- Standalone electrical cabinets.
- Row-mounted switching cabinets.
- Professional switchboard and panel-building projects.
