Why Choose the ABB 2V002A Distribution Panel 2PW?

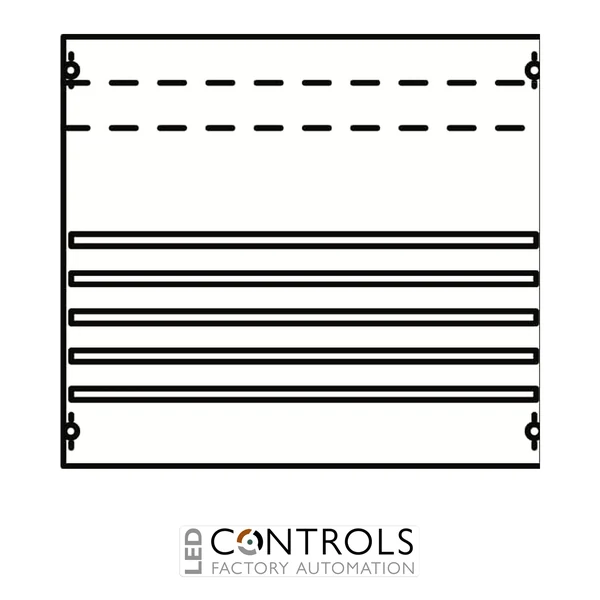

The ABB 2V002A is a professional 2-panel-width (2PW) distribution panel designed for busbar, terminal and sub-distribution applications within compatible ABB modular cabinets. Supplied under ABB order code 2CPX037609R9999, it forms part of ABB's internal expansion system and provides a structured solution for building professional electrical distribution assemblies.
The 2V002A is mounted on EDF profile rails and provides a 3 GU / 450 mm height with a 2PW / 500 mm width, delivering 72 PLE of installation capacity. The panel incorporates a horizontal five-pole copper busbar system and is suitable for compatible cabinets with a minimum installation depth of 120 mm.
For power distribution, the 2V002A uses five 12 × 5 mm copper busbars arranged with a 40 mm centre distance. The system is rated for currents up to 360 A with the maximum specified 12 × 10 mm busbar configuration, while closed RAL 7035 plastic covers with a 90° press-and-turn closure provide convenient protected access.
Key Advantages
- Genuine ABB 2PW distribution panel for professional sub-distribution systems.
- 72 PLE installation capacity within a compact 450 mm-high field.
- Integrated five-pole horizontal copper busbar system.
- 40 mm busbar centre distance for coordinated ABB system integration.
- Supplied with five 12 × 5 mm copper busbars.
- Distribution system supports rated currents up to 360 A with the maximum specified busbar configuration.
- EDF profile rails included for straightforward integration into compatible cabinets.
- Closed plastic covers with 90° press-and-turn closures provide convenient equipment access.
Key Features
- ABB 2V002A distribution panel.
- ABB order code 2CPX037609R9999.
- 2-panel-width (2PW) configuration.
- 3 GU / 450 mm overall height.
- 500 mm panel width.
- 72 PLE installation capacity.
- Horizontal five-pole busbar arrangement.
- Five 12 × 5 mm copper busbars.
- 40 mm busbar centre spacing.
- Closed plastic cover in RAL 7035.
- 90° press-and-turn closure.
- EDF profile rails included in the scope of supply.
- Suitable for compatible cabinets from 120 mm depth.
Structured Power Distribution for ABB Cabinet Systems
Distribution panels such as the ABB 2V002A provide a coordinated internal framework for busbars, terminals and electrical distribution equipment within modular switchboard assemblies. Its horizontal five-pole copper busbar arrangement provides a structured power distribution backbone, while the EDF profile rails support secure mechanical integration into compatible ABB cabinet systems.
The 2V002A is designed so that distribution panels or field combinations use the same grid units as the cabinets in which they are installed. In standalone and row switching cabinets, two compatible fields or field combinations are installed one above the other, enabling scalable and organised electrical distribution assemblies.
Typical Applications
- ABB electrical sub-distribution systems.
- Busbar and terminal distribution assemblies.
- Commercial power distribution cabinets.
- Industrial switchboards and electrical cabinets.
- Building-services electrical distribution.
- Standalone and row-mounted switching cabinets.
- Professional switchboard and panel-building projects.
