Why Choose the ABB 2V1A Distribution Panel?

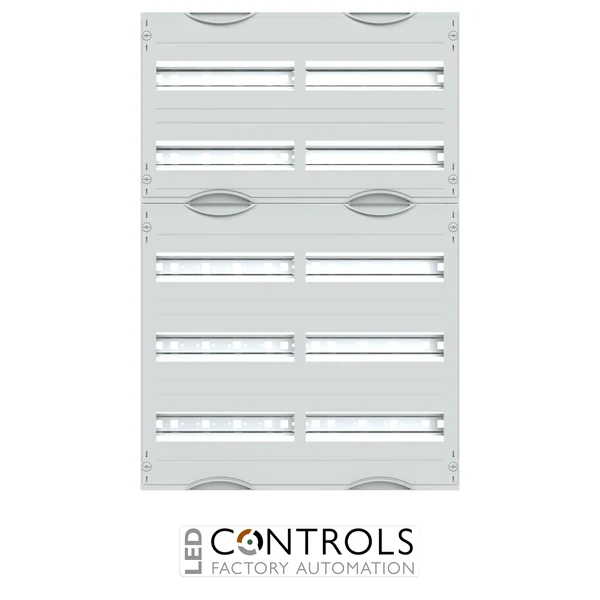

The ABB 2V1A is a 2 panel-width (2PW) distribution panel designed for DIN rail-mounted modular devices within compatible ABB electrical sub-distribution cabinets. As part of ABB's internal expansion system, it provides a coordinated installation field for protective, switching and control equipment.
The 2V1A has a nominal installation size of 750 mm high × 500 mm wide and provides capacity for 120 modular space units (PLE). It uses 35 × 15 mm horizontal DIN rails with a 125 mm row spacing, supporting modular devices manufactured in accordance with DIN 43880.

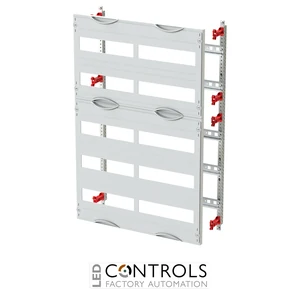

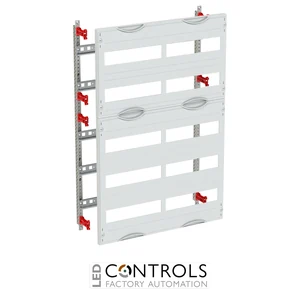

Designed for compatible cabinets from 120 mm depth, the 2V1A includes the required EDF profile rails and is supplied without N/PE quick plug-in terminals. Its plastic covers feature equipment cut-outs and 90° push-turn fasteners, providing an organised and accessible internal distribution arrangement.
Key Advantages
- Purpose-designed 2PW distribution panel for DIN rail-mounted devices.
- Provides capacity for 120 modular space units (PLE).
- 750 mm high × 500 mm wide installation field.
- 125 mm row spacing for organised modular equipment installation.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for integration into ABB distribution systems.
Key Features
- ABB internal expansion distribution panel.
- 2 panel widths (2PW).
- 5 grid units (GU).
- 750 mm height.
- 500 mm width.
- 120 modular space units (PLE).
- 125 mm row spacing.
- 35 × 15 mm horizontal DIN rails.
- Designed for modular devices according to DIN 43880.
- Plastic covers with equipment cut-outs.
- 90° push-turn cover fasteners.
- RAL 7035 finish.
- Supplied without N/PE quick plug-in terminals.
Reliable Modular Distribution for Electrical Installations
Distribution panels provide the internal mounting structure needed to organise modular protective, switching and control equipment inside electrical cabinets. DIN rail-based construction allows devices to be arranged systematically while supporting efficient installation, wiring, inspection and maintenance.
The ABB 2V1A combines a 500 mm field width with capacity for 120 modular spaces. Its 125 mm row spacing, included EDF profile rails and coordinated covers make it a practical internal expansion solution for compatible ABB sub-distribution cabinets.
Typical Applications
- Electrical sub-distribution cabinets.
- DIN rail-mounted protective devices.
- Modular switching and control equipment.
- Commercial building distribution systems.
- Industrial electrical distribution assemblies.
- ABB cabinet and panel-building installations.
