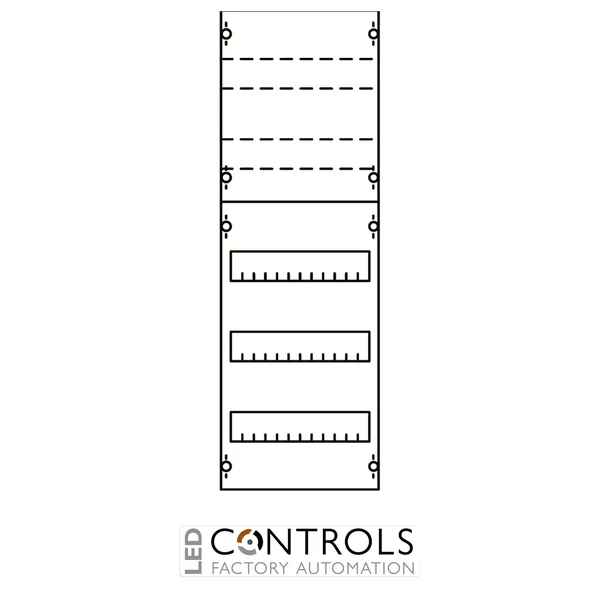

Why Choose the ABB 1V1KA Distribution Panel?
The ABB 1V1KA is a 1 PW distribution panel for DIN rail-mounted devices and terminal blocks, designed for structured internal installation in compatible ABB low-voltage distribution cabinets. Mounted on ABB EDF profiles, it provides a coordinated framework for organising modular electrical equipment and DIN rail terminal assemblies.
The 1V1KA provides a 1 PW field width of 250 mm and a 5 GU height of 750 mm, offering 60 space units. It combines an upper area for DIN rail-mounted equipment with a terminal-block installation area, providing flexibility for distribution assemblies that require both modular devices and organised conductor termination.
Designed for compatible cabinets from 120 mm depth, the 1V1KA uses 35 × 15 mm DIN rails with perforations for wire holders and a 125 mm row spacing. Plastic covers with equipment cut-outs and a 90° push-turn closure complete the assembly, while the required EDF profile rails are included.
Key Advantages
- Dedicated 1 PW distribution panel for compatible ABB enclosure systems.
- Designed for both DIN rail-mounted devices and terminal blocks.
- Provides 60 space units within a 5 GU panel configuration.
- 35 × 15 mm DIN rails support standard modular installation requirements.
- 125 mm row spacing provides an organised equipment layout.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for straightforward integration.
Key Features
- ABB CombiLine N internal distribution system.
- Model 1V1KA.
- 1 PW field width.
- 5 GU / 750 mm height.
- 60 space units.
- DIN rails for modular devices and terminal blocks.
- 35 × 15 mm DIN rail profile.
- 125 mm row spacing.
- DIN rails perforated for compatible wire holders.
- Plastic covers with equipment cut-outs.
- 90° push-turn cover closure.
- RAL 7035 cover finish.
- Supplied without N/PE quick-connect terminals.
- EDF profile rails included.
- ABB order code 2CPX037612R9999.
Structured DIN Rail and Terminal Installation
Distribution panels combining modular-device and terminal-block mounting provide a practical way to organise protection, switching and conductor termination within a single cabinet field. The ABB 1V1KA provides dedicated installation space for these functions while maintaining a structured internal arrangement based on ABB’s EDF profile system.
With its 1 PW width, 5 GU height and 60 space units, the 1V1KA is suited to professional low-voltage distribution assemblies where DIN rail devices and terminal blocks must be integrated within the same field. Distribution panels or field combinations should use the same grid-unit configuration as the cabinets in which they are installed.
Typical Applications
- ABB CombiLine N low-voltage distribution cabinets.
- DIN rail-mounted protective and switching devices.
- DIN rail terminal-block installations.
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution systems.
- Floor-standing and row switchgear cabinet assemblies.
