Why Choose the ABB 2V1KA Distribution Panel?

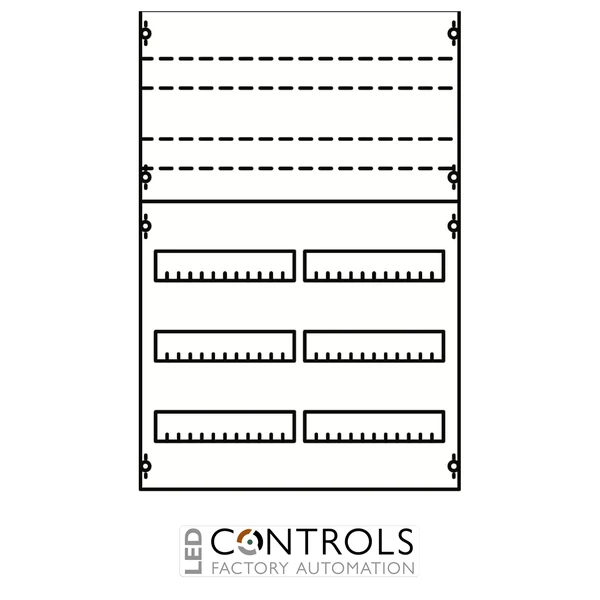

The ABB 2V1KA is a 2 PW distribution panel for DIN rail-mounted devices and terminal blocks, designed for structured internal installation in compatible ABB low-voltage distribution cabinets. Mounted on ABB EDF profiles, it provides a coordinated framework for organising modular electrical equipment and DIN rail terminal assemblies.
The 2V1KA provides a 2 PW field width of 500 mm and a 5 GU height of 750 mm, offering 120 space units. Its DIN rail arrangement provides three rails with 24 modular spaces per rail, while a 125 mm row spacing supports an orderly installation of compatible modular devices and terminal blocks.
Designed for compatible cabinets from 120 mm depth, the 2V1KA uses 35 × 15 mm DIN rails with perforations for wire holders. Plastic covers with equipment cut-outs, a 90° push-turn closure and RAL 7035 finish complete the assembly, while the required EDF profile rails are included.
Key Advantages
- Dedicated 2 PW distribution panel for compatible ABB enclosure systems.
- Designed for both DIN rail-mounted devices and terminal blocks.
- Provides 120 space units within a 5 GU panel configuration.
- Three DIN rails with 24 modular spaces per rail.
- 125 mm row spacing supports an organised equipment layout.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for straightforward cabinet integration.
Key Features
- ABB CombiLine N internal distribution system.
- Model 2V1KA.
- 2 PW field width.
- 5 GU / 750 mm height.
- 120 space units.
- Three DIN rails.
- 24 modular spaces per DIN rail.
- 35 × 15 mm DIN rail profile.
- 125 mm row spacing.
- DIN rails perforated for compatible wire holders.
- Suitable for modular devices according to DIN 43880.
- Plastic covers with equipment cut-outs.
- 90° push-turn cover closure.
- RAL 7035 cover finish.
- Supplied without N/PE quick-connect terminals.
- EDF profile rails included.
- ABB order code 2CPX037613R9999.
Structured DIN Rail and Terminal Installation
Distribution panels combining modular-device and terminal-block mounting provide an organised framework for protective devices, switching equipment and conductor termination within low-voltage cabinets. The ABB 2V1KA provides a generous 500 mm field width with three DIN rails, enabling compatible equipment to be arranged clearly across a two-panel-wide installation area.
With its 2 PW width, 5 GU height and 120 space units, the 2V1KA is suited to professional distribution assemblies where modular devices and terminal blocks need to be integrated within the same field. Distribution panels or field combinations should use the same grid-unit configuration as the cabinets in which they are installed.
Typical Applications
- ABB CombiLine N low-voltage distribution cabinets.
- DIN rail-mounted protective and switching devices.
- DIN rail terminal-block installations.
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution systems.
- Floor-standing and row switchgear cabinet assemblies.
