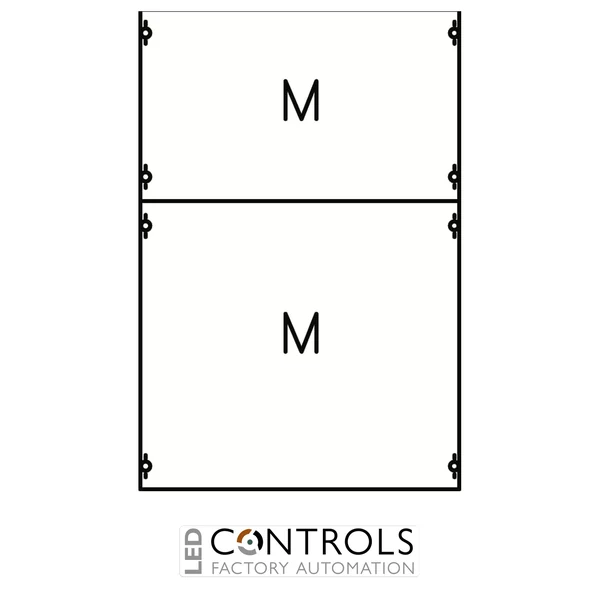

Why Choose the ABB 2M1A Distribution Panel?
The ABB 2M1A is a professional 2 PW distribution panel designed for use within ABB low-voltage sub-distribution cabinets and modular enclosure systems. The panel forms part of the ABB interior expansion system and is supplied mounted on EDF profile rails, providing a robust platform for mounting electrical distribution equipment.
Designed around a 5 GU grid height of 750 mm and a 2 PW field width of 500 mm, the 2M1A provides 120 modular space units. It incorporates 2 mm sheet-steel mounting plates that can be continuously adjusted in depth using suitable depth angle pieces, allowing the mounting position to be adapted to the equipment installed within the distribution assembly.
The ABB 2M1A measures 500 mm wide × 750 mm high × 120 mm deep and features closed covers with a practical press-and-turn closure system. It is suitable for cabinets from 120 mm depth, making it a versatile interior fitting solution for professional commercial and industrial sub-distribution installations.
Key Advantages
- Professional 2 PW distribution panel for ABB sub-distribution systems.
- 120 modular space units provide substantial installation capacity.
- 2 mm sheet-steel mounting plates provide a robust equipment mounting surface.
- Continuously adjustable mounting depth for flexible panel configuration.
- Supplied with EDF profile rails for integration into compatible cabinets.
- Suitable for modular cabinets from 120 mm depth.
Key Features
- ABB interior expansion system distribution panel.
- 2 PW field width.
- 5 GU grid height.
- 500 mm panel width.
- 750 mm panel height.
- 120 mm panel depth.
- 120 modular space units.
- 2 mm sheet-steel mounting plates.
- Mounting plates continuously adjustable in depth.
- Closed covers for a protected and organised installation.
- EDF profile rails included.
- Designed for professional low-voltage distribution assemblies.
Flexible Interior Fitting for Electrical Distribution Systems
Distribution panels provide the internal mounting structure required to organise electrical equipment within compatible low-voltage cabinets. The ABB 2M1A combines adjustable sheet-steel mounting plates with EDF profile rails and closed covers, giving panel builders a flexible platform for creating professional sub-distribution assemblies.
The 2M1A uses a 5 GU by 2 PW format, corresponding to a 750 mm high by 500 mm wide installation field. Distribution panels and field combinations must use grid dimensions compatible with the cabinets in which they are installed, helping ensure correct mechanical integration throughout the ABB distribution system.
Typical Applications
- ABB low-voltage sub-distribution cabinets.
- Commercial electrical distribution boards.
- Industrial electrical distribution assemblies.
- Building services and infrastructure installations.
- Custom switchgear and electrical panel assemblies.
- Panel-building applications requiring adjustable mounting plates.
