Why Choose the ABB 1V2A Distribution Panel?

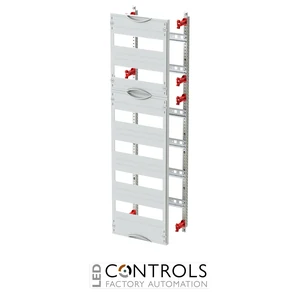

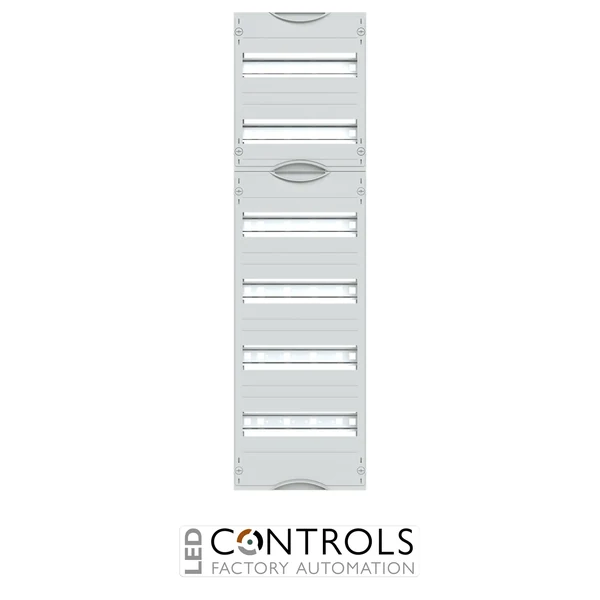

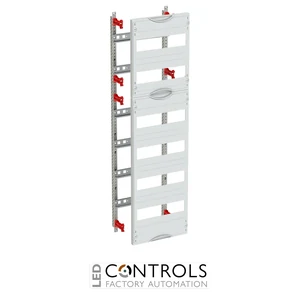

The ABB 1V2A is a 1 PW distribution panel designed for DIN rail-mounted modular devices within compatible ABB low-voltage distribution cabinets. Supplied as part of ABB’s internal expansion system, it is mounted on EDF profiles and provides a coordinated installation platform for professional sub-distribution assemblies.
Configured with 6 GU and a field width of 1 PW / 250 mm, the 1V2A provides 72 space units across six DIN rail rows. Each row accommodates 12 modular units, with 125 mm row spacing and 35 × 15 mm DIN rails suitable for modular devices manufactured to DIN 43880.
The panel measures 250 mm wide × 900 mm high and is suitable for compatible cabinets from 120 mm depth. Plastic covers with cut-outs, a 90-degree press-and-turn closure and a RAL 7035 finish provide a practical protective front arrangement, while the required EDF profile rails are included in the scope of delivery.
Key Advantages
- Purpose-designed 1 PW distribution panel for DIN rail-mounted devices.
- 6 GU / 900 mm configuration for substantial modular equipment capacity.
- Provides 72 space units across six DIN rail rows.
- 125 mm row spacing supports an organised modular installation.
- Suitable for modular devices according to DIN 43880.
- EDF profile rails included for integration into compatible ABB cabinets.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 1V2A.
- 1 PW / 250 mm field width.
- 6 GU / 900 mm panel height.
- 72 space units.
- Six DIN rail rows.
- 12 modular units per DIN rail.
- 125 mm row spacing.
- 35 × 15 mm DIN rails.
- Plastic covers with equipment cut-outs.
- 90° press-and-turn closures.
- EDF profile rails included.
Organised DIN Rail Distribution for Professional Cabinets
DIN rail distribution panels provide a structured mounting platform for modular protection, switching and control equipment within low-voltage cabinets. Standardised rail spacing and modular dimensions help panel builders create organised assemblies while allowing individual devices to remain accessible for installation, inspection and maintenance.
The ABB 1V2A provides six DIN rail rows with 12 modular units per row, giving a total capacity of 72 space units. Its 125 mm row spacing, equipment-cover cut-outs and included EDF profile rails make it a coordinated solution for integrating DIN 43880 modular devices into compatible ABB distribution cabinets.
Typical Applications
- Low-voltage electrical distribution cabinets.
- DIN rail modular device installations.
- ABB modular sub-distribution systems.
- Commercial building electrical distribution.
- Industrial power and control assemblies.
- Protection and switching device installations.
- Panel building and electrical system integration.
