Why Choose the ABB 2V2KA Distribution Panel?

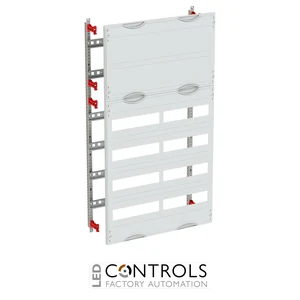

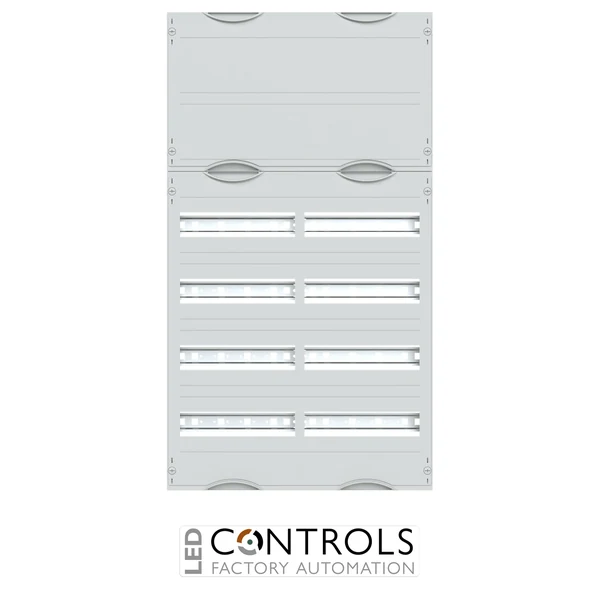

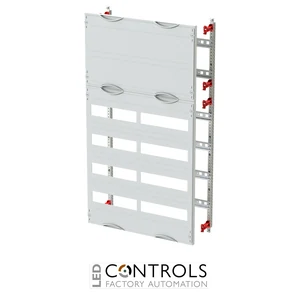

The ABB 2V2KA (2CPX037625R9999) is a professional 2-panel-width distribution panel for DIN rail devices and terminal blocks designed for use within compatible ABB sub-distribution cabinets. Part of the ABB DESUJ Sub Distribution product group, it provides a high-capacity internal mounting system for modular protection, switching, control and terminal equipment.
The 2V2KA is mounted on EDF profiles and provides 144 modular space units within a 500 mm-wide field. Its installation system uses horizontal 35 × 15 mm DIN rails with perforations for wire holders and a 125 mm row spacing, providing an organised platform for DIN 43880 modular devices and associated terminal blocks.
With dimensions of 900 mm high × 500 mm wide × 120 mm deep, a field width of 2 PW and six grid units of height, the 2V2KA is designed for substantial electrical distribution assemblies. Plastic covers with cut-outs, finished in RAL 7035 and secured using 90-degree press-and-turn closures, provide convenient access while helping maintain a neat and professional installation.
Key Advantages
- High-capacity 2 PW distribution panel for DIN rail devices and terminal blocks.
- 144 modular space units provide substantial installation capacity.
- Generous 500 mm field width for larger distribution assemblies.
- 125 mm row spacing supports organised device installation and wiring.
- Horizontal 35 × 15 mm DIN rails with perforations for wire holders.
- Designed for modular installation devices complying with DIN 43880.
- Plastic covers with cut-outs and practical 90-degree press-and-turn closures.
- EDF profile rails are included for straightforward integration into compatible ABB cabinets.
Key Features
- ABB 2V2KA distribution panel.
- 2 PW field width.
- 6 grid units / 900 mm panel height.
- 144 modular space units.
- 4 DIN rails with 24 modular spaces per DIN rail.
- 35 × 15 mm horizontal DIN rails.
- 125 mm row spacing.
- Suitable for DIN rail devices and terminal blocks.
- Supplied without N/PE quick plug-in terminals.
- Plastic covers with cut-outs in RAL 7035.
- EDF profile mounting with profile rails included.
High-Capacity DIN Rail and Terminal Distribution
Distribution panels provide a structured mounting platform for modular protection, switching, control and terminal equipment within electrical cabinets. The ABB 2V2KA combines a wide 2 PW format with DIN rail mounting space and provision for terminal blocks, making it particularly suitable for larger assemblies where both modular devices and organised conductor termination are required.
The 2V2KA is designed around ABB's EDF profile system and uses 35 × 15 mm DIN rails for compatible rail-mounted equipment. Its 144-space capacity, 125 mm row spacing and included protective covers provide a practical foundation for building professional sub-distribution assemblies within compatible ABB cabinet systems.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Residential electrical distribution installations.
- Industrial electrical and control cabinets.
- DIN rail protection and switching equipment.
- Terminal block and conductor distribution installations.
- Modular control and automation equipment.
- ABB EDF profile-based cabinet systems.
